Introduction
Boolean Algebra forms the foundation of modern Digital Electronics and Computer Science. Every digital circuit, processor, memory chip, calculator, smartphone, and computer performs operations using Boolean expressions.
To simplify these Boolean expressions, mathematicians developed several Boolean Laws. One of the simplest yet most powerful laws is the Involution Law.
The Involution Law states that if a variable is complemented twice, the original variable is obtained again.
Learning Objectives
After completing this article, you will be able to:
You Will Learn
- Understand Boolean Algebra fundamentals.
- Understand what Involution Law means.
- Learn the mathematical representation.
- Understand why double negation returns the original variable.
- Apply the law while simplifying Boolean expressions.
- Prepare for competitive exams and interviews.
Prerequisites
Before learning the Involution Law, you should be familiar with the following concepts.
| Topic | Importance |
|---|---|
| Binary Number System | Digital circuits work using 0 and 1. |
| Boolean Variables | Variables represent logical values. |
| Complement Operator | Used to invert logical values. |
| Basic Logic Gates | NOT, AND and OR gates. |
| Truth Tables | Verify Boolean identities. |
Table of Contents
- Introduction
- Boolean Algebra Overview
- Importance of Boolean Laws
- What is Involution Law?
- Why is it called Involution?
- Mathematical Formula
- Simple Examples
- Truth Table (Next Part)
- Proof (Next Part)
- Applications (Upcoming)
What is Boolean Algebra?
Boolean Algebra is a branch of mathematics developed by George Boole. Unlike ordinary algebra, Boolean Algebra deals with only two logical values:
| Binary Value | Meaning |
|---|---|
| 0 | False / OFF / LOW |
| 1 | True / ON / HIGH |
Every digital system—from smartphones to satellites—uses Boolean Algebra to make logical decisions.
Why Do We Need Boolean Laws?
Complex digital circuits often produce lengthy Boolean expressions. Boolean Laws help simplify these expressions, making digital systems faster, cheaper, and easier to design.
Advantages
- Reduce circuit complexity
- Reduce hardware cost
- Reduce power consumption
- Increase processing speed
- Simplify Boolean expressions
Without Boolean Laws
- Complex circuits
- Higher manufacturing cost
- More logic gates
- Greater power usage
- Difficult debugging
What is Involution Law?
The Involution Law states that if the complement operation is applied twice to a Boolean variable, the original variable is obtained.
This means applying the NOT operation twice does not change the original value.
Why is it Called the Involution Law?
In Mathematics, an Involution is an operation that returns the original value when applied twice.
Since complementing a Boolean variable twice returns the original variable, this property is known as the Involution Law.
Real-Life Analogy
Imagine turning a room light OFF and then immediately turning it ON again. After two opposite actions, the light returns to its original state. Similarly, applying NOT twice returns the original Boolean value.
Mathematical Representation
\[ ((A)')'=A \]
Both notations represent exactly the same Boolean Law.
Simple Examples
Example 1
Apply complement twice.
\[ \overline{\overline{1}}=1 \]
Example 2
Boolean variable
\[ \overline{\overline{X}}=X \]
Example 3
Expression
\[ \overline{\overline{(A+B)}}=A+B \]
Key Takeaway
The Involution Law is one of the most fundamental laws in Boolean Algebra. It states that applying the complement operator twice cancels the negation and restores the original Boolean value. This principle is widely used in Digital Electronics, Logic Gate Design, Computer Architecture, Embedded Systems, FPGA design, and Boolean expression simplification.
Truth Table of Involution Law
The easiest way to verify any Boolean Law is by using a Truth Table. A truth table shows the output of a Boolean expression for every possible input combination.
In the Involution Law, we first complement a variable and then complement it again. If the final result matches the original input, the law is verified.
Step-by-Step Truth Table
| Input (A) | \(\overline{A}\) | \(\overline{\overline{A}}\) | Result |
|---|---|---|---|
| 0 | 1 | 0 | Original value restored |
| 1 | 0 | 1 | Original value restored |
Conclusion from Truth Table
Since every possible input satisfies the equation, \(\overline{\overline{A}}=A\) the Involution Law is proved.
Mathematical Proof of Involution Law
Let us verify the law mathematically.
Case 1
Suppose A = 0
\[ A=0 \]
First Complement:
\[ \overline{A}=1 \]
Second Complement:
\[ \overline{\overline{A}}=0 \]
Therefore, \[ \overline{\overline{0}}=0 \]
Case 2
Suppose A = 1
\[ A=1 \]
First Complement
\[ \overline{A}=0 \]
Second Complement
\[ \overline{\overline{A}}=1 \]
Therefore, \[ \overline{\overline{1}}=1 \]
Understanding Double Complement
The complement operator (NOT) reverses the Boolean value.
| Operation | Output |
|---|---|
| NOT 0 | 1 |
| NOT 1 | 0 |
| NOT (NOT 0) | 0 |
| NOT (NOT 1) | 1 |
Since the second NOT operation reverses the first reversal, the original value is restored.

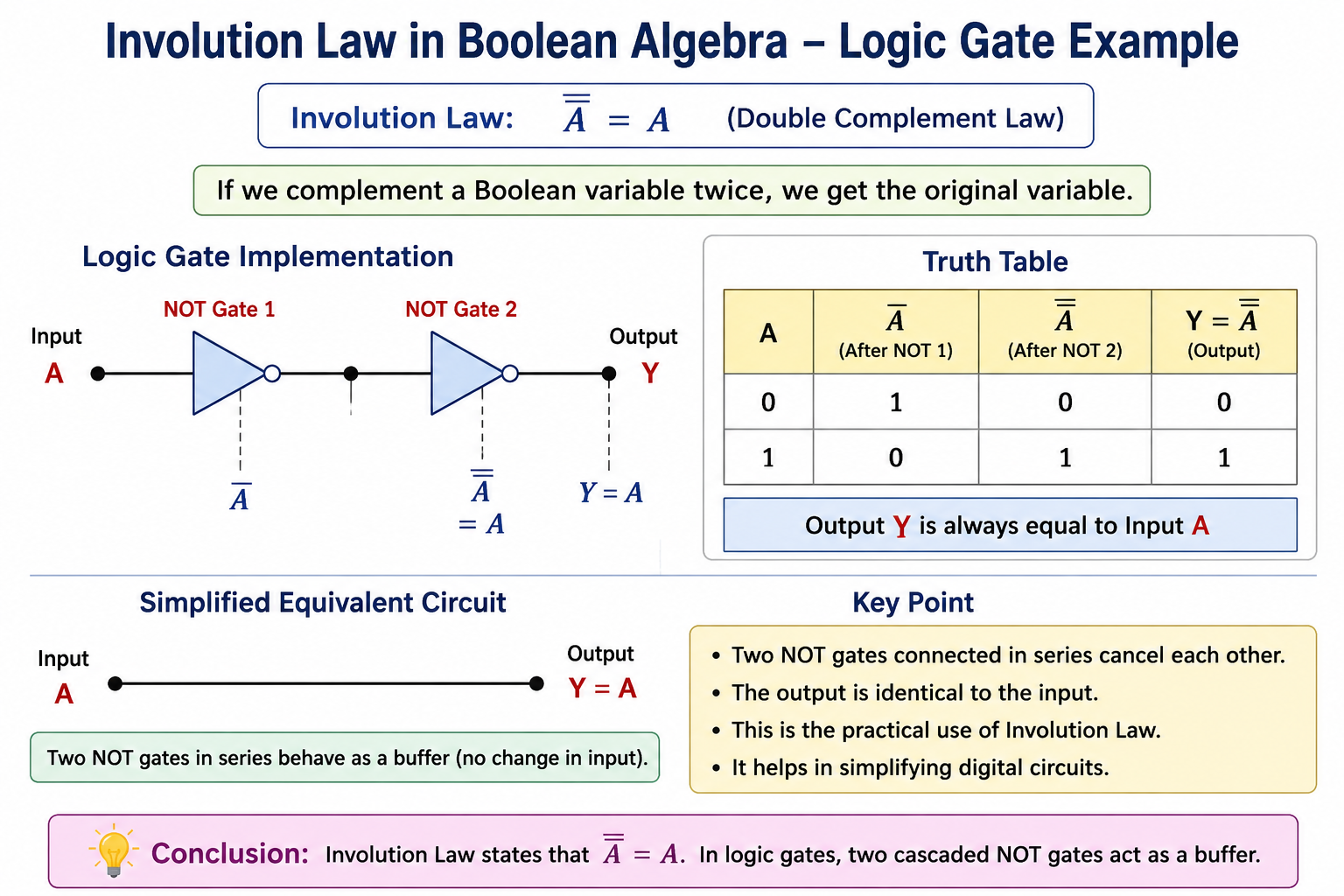

Involution Law Using NOT Gates
The Involution Law can be understood easily with NOT gates.
┌───────┐ ┌───────┐
A ───►│ NOT 1 │─────►│ NOT 2 │────► Output
Output = A
The first NOT gate complements the input.
The second NOT gate complements it again.
Therefore, the output becomes exactly equal to the original input.
Step-by-Step Logic Flow
Input A
↓
Apply NOT
↓
Ā
↓
Apply NOT Again
↓
A (Original Value)
Solved Examples
Example 1
Simplify the expression.
\[ \overline{\overline{X}} \]
Using Involution Law,
\[ =X \]
Example 2
Simplify
\[ \overline{\overline{(A+B)}} \]
Applying the Involution Law,
\[ =A+B \]
Example 3
Simplify
\[ \overline{\overline{AB}} \]
Answer
\[ =AB \]
Examination Tip
- Whenever you see a double complement, remove both complement bars immediately.
- Never apply De Morgan's Law when only a double complement is present.
- Always simplify double complements before applying any other Boolean Law.
- This law saves time in competitive examinations.
Part 2 Summary
In this part, we verified the Involution Law using a truth table, mathematical proof, and NOT gate implementation. We also solved several examples demonstrating that applying the complement operation twice always returns the original Boolean value.
Real-Life Analogy of the Involution Law
Understanding the Involution Law becomes much easier when we relate it to everyday activities. In real life, performing an action and then immediately performing its opposite action usually brings us back to the original state. The same principle applies in Boolean Algebra.
Analogy 1: Light Switch
Imagine a room where the light is initially OFF. Turning the switch ON changes its state. Turning the switch OFF again restores the original state. Likewise, applying the NOT operation twice returns the original Boolean value.
Analogy 2: Door
Suppose a door is closed. Opening the door changes its condition. Closing it again restores its initial position. This is similar to the double complement operation.
Analogy 3: Standing Up
A person is sitting. They stand up. They sit down again. The final position is identical to the original one.
Importance of Involution Law in Digital Logic
Digital circuits are built using logic gates. Whenever two NOT gates are connected in series, the output becomes exactly equal to the original input. Engineers use this property while designing digital systems.
| Application | Role of Involution Law |
|---|---|
| Logic Circuit Simplification | Removes unnecessary NOT gates. |
| Digital Circuit Design | Produces simpler hardware. |
| Logic Optimization | Reduces gate count. |
| Integrated Circuits | Reduces chip complexity. |
| Microprocessors | Improves logic optimization. |
Applications in Computer Science
Boolean Algebra is the language of computers. The Involution Law is frequently used while designing processors, compilers, operating systems, and digital hardware.
Used In
- Computer Architecture
- Compiler Design
- Artificial Intelligence
- Digital Signal Processing
- Robotics
- Computer Graphics
- Data Compression
Hardware Components
- CPU
- ALU
- Memory Units
- Registers
- Control Unit
- Cache Memory
- Digital Controllers
Applications in Embedded Systems
Embedded systems perform thousands of Boolean operations every second. Boolean simplification helps improve processing speed and reduce hardware cost.
Examples
- Smart Washing Machines
- Automatic Doors
- Microwave Ovens
- Industrial Automation
- Smart Traffic Signals
- IoT Devices
- Medical Equipment
Applications in PLC Systems
Programmable Logic Controllers (PLCs) use Boolean expressions for controlling industrial machines. During optimization, double complements are eliminated using the Involution Law.
Programming Perspective
Many programming languages support logical NOT operators. Applying the NOT operator twice restores the original Boolean value.
Java Example
boolean result = true;
System.out.println(!!result);
// Output:
// true
Python Example
value = True
print(not(not(value)))
# Output:
# True
C Language Example
#include <stdio.h>
int main()
{
int a = 1;
printf("%d", !!a);
return 0;
}
In C programming, the expression !!value is commonly used to convert any non-zero value into 1 (true).
More Simplification Examples
| Expression | Simplified Form |
|---|---|
| \(\overline{\overline{A}}\) | \(A\) |
| \(\overline{\overline{B}}\) | \(B\) |
| \(\overline{\overline{(A+B)}}\) | \(A+B\) |
| \(\overline{\overline{AB}}\) | \(AB\) |
| \(\overline{\overline{(A\cdot B+C)}}\) | \(A\cdot B+C\) |
Practice Questions
- Simplify \(\overline{\overline{P}}\).
- Simplify \(\overline{\overline{(A+B)}}\).
- Simplify \(\overline{\overline{XYZ}}\).
- Can the Involution Law be applied to Boolean expressions?
- Why are two NOT gates equivalent to a wire?
Part 3 Summary
In this part, you learned how the Involution Law is applied in Digital Electronics, Computer Science, Embedded Systems, PLC programming, and software development. You also explored real-life analogies, programming examples, and additional simplification problems that demonstrate the practical importance of the Double Complement Law.
Advanced Boolean Expression Simplification Using Involution Law
The Involution Law is rarely used alone in practical Boolean Algebra. During the simplification of complex Boolean expressions, it is usually combined with other Boolean laws such as the Complement Law, Identity Law, De Morgan's Law, Absorption Law, and Distributive Law.
Example 1
Simplify the following expression.
Step 1: Apply the Involution Law.
\[ A+B \]
Example 2
Simplify the expression.
Applying the Involution Law,
\[ AB \]
Example 3
Remove the double complement.
\[ (A+B)\cdot C \]
Combining Multiple Boolean Laws
Consider the following Boolean expression.
Step 1: Apply Involution Law.
\[ A+A \]
Step 2: Apply Idempotent Law.
\[ A \]
Comparison Between Involution Law and Other Boolean Laws
| Boolean Law | Formula | Main Purpose |
|---|---|---|
| Involution Law | \(\overline{\overline{A}}=A\) | Removes double complement. |
| Complement Law | \(A+\overline{A}=1\) | Produces logical TRUE. |
| Identity Law | \(A+0=A\) | Identity element. |
| Null Law | \(A+1=1\) | Dominance property. |
| Idempotent Law | \(A+A=A\) | Removes duplicate terms. |
| De Morgan's Law | \(\overline{A+B}\) | Converts AND into OR and vice versa. |
Involution Law vs De Morgan's Law
Involution Law
- Works only on double complement.
- Very easy to apply.
- Removes two NOT operations.
- No operator changes.
De Morgan's Law
- Works on complemented expressions.
- Changes AND into OR.
- Changes OR into AND.
- Complements every variable.
Common Mistakes Students Make
| Mistake | Correct Approach |
|---|---|
| Applying De Morgan's Law first. | Remove double complement first. |
| Ignoring the second complement. | Cancel both complements. |
| Thinking NOT NOT A equals NOT A. | It equals A. |
| Applying the law to a single NOT. | Requires exactly two complements. |
Memory Trick
Remember This Formula
NOT of NOT = Original
Just remember the sentence:
"Double Negative becomes Positive."
The same concept is used in Boolean Algebra.
Competitive Examination Tips
Quick Revision
- Always remove double complements first.
- Never skip simplification.
- Practice using truth tables.
- Memorize the formula \(\overline{\overline{A}}=A\).
- Know the difference between Involution Law and De Morgan's Law.
- Use this law before applying other Boolean identities.
Practice Problems
- Simplify \(\overline{\overline{X}}+\overline{Y}\).
- Simplify \(\overline{\overline{AB}}+C\).
- Simplify \(\overline{\overline{(A+B+C)}}\).
- Simplify \(\overline{\overline{A}}+\overline{\overline{B}}\).
- Simplify \(\overline{\overline{A}}A\).
Part 4 Summary
In this part, you learned how to use the Involution Law in advanced Boolean expression simplification and how it works together with other Boolean Laws. You also explored the differences between Involution Law and De Morgan's Law, common student mistakes, memory tricks, exam tips, and additional practice problems to strengthen your understanding.
Solved Examples of Involution Law
The best way to master the Involution Law is by solving different Boolean expressions. In this section, we start with basic problems and gradually move toward more advanced examples that are commonly asked in school examinations, university exams, and competitive tests.
Basic Solved Examples
| Expression | Solution |
|---|---|
| \(\overline{\overline{A}}\) | \(A\) |
| \(\overline{\overline{B}}\) | \(B\) |
| \(\overline{\overline{X}}\) | \(X\) |
| \(\overline{\overline{Y}}\) | \(Y\) |
| \(\overline{\overline{P}}\) | \(P\) |
Intermediate Examples
Simplify
\[ \overline{\overline{(A+B)}} \]
Applying Involution Law,
\[ =A+B \]
Simplify
\[ \overline{\overline{AB}} \]
\[ =AB \]
Simplify
\[ \overline{\overline{(AB+C)}} \]
\[ =AB+C \]
Advanced Examples
Example 1
Applying the Involution Law,
\[ =A+B \]
Example 2
Remove the double complement.
\[ =AB \]
Example 3
Applying Involution Law,
\[ =(A+B)C \]
Gate-Level Interpretation
Two NOT gates connected one after another are equivalent to a direct wire.
Input
│
▼
┌──────┐
│ NOT │
└──────┘
│
▼
┌──────┐
│ NOT │
└──────┘
│
▼
Output = Input
Circuit Optimization
Consider the following logic circuit.
A
│
▼
NOT
│
▼
NOT
│
▼
AND Gate
The two NOT gates can be removed.
A
│
▼
AND Gate
University Examination Questions
- State the Involution Law.
- Prove the Involution Law using a truth table.
- Verify the law mathematically.
- Explain the significance of the Double Complement Law.
- Write two practical applications of the Involution Law.
- Simplify \(\overline{\overline{AB}}\).
- Simplify \(\overline{\overline{(A+B)}}\).
- Explain why two NOT gates behave as a buffer.
Competitive Examination Questions
| Question | Answer |
|---|---|
| \(\overline{\overline{X}}\) | \(X\) |
| \(\overline{\overline{PQ}}\) | \(PQ\) |
| \(\overline{\overline{(P+Q)}}\) | \(P+Q\) |
| Double complement equals? | Original expression |
Interview Questions with Answers
What is the Involution Law?
It states that complementing a Boolean variable twice restores the original variable.
Why is it important?
It simplifies Boolean expressions and removes unnecessary NOT gates during digital circuit optimization.
What is the mathematical formula?
\[ \overline{\overline{A}}=A \]
Quick Revision Notes
- Apply the Involution Law before any other Boolean Law.
- Remove double complements immediately.
- Two NOT gates behave as a buffer.
- The law is also called the Double Complement Law.
- It reduces hardware complexity.
- It is frequently used in digital logic simplification.
- It improves circuit performance.
Part 5 Summary
In this part, you solved numerous Boolean expressions using the Involution Law, learned gate-level interpretation, optimized digital circuits by removing redundant NOT gates, and practiced university, competitive exam, and interview questions. These examples reinforce the practical use of the Double Complement Law in Boolean Algebra and Digital Logic Design.
Multiple Choice Questions (MCQs)
Test your understanding of the Involution Law with the following multiple-choice questions. These questions are useful for school examinations, university exams, GATE, SSC, Railway, Diploma, B.Tech, BCA, MCA, WBJEE, and interview preparation.
MCQ 1
According to the Involution Law, the value of \(\overline{\overline{A}}\) is:
- A. \(\overline{A}\)
- B. \(A\)
- C. 0
- D. 1
MCQ 2
The Involution Law is also known as:
- A. Identity Law
- B. Associative Law
- C. Double Complement Law
- D. Consensus Law
MCQ 3
Which logic gate is directly related to the Involution Law?
- A. AND Gate
- B. OR Gate
- C. XOR Gate
- D. NOT Gate
MCQ 4
Two NOT gates connected in series behave like:
- A. OR Gate
- B. Buffer
- C. NAND Gate
- D. NOR Gate
MCQ 5
Simplify:
\[ \overline{\overline{(A+B)}} \]
- A. \(\overline{A+B}\)
- B. \(A+B\)
- C. 1
- D. 0
Frequently Asked Questions (FAQs)
What is the Involution Law?
The Involution Law states that applying the complement operation twice returns the original Boolean variable.
\[ \overline{\overline{A}}=A \]
Why is it called the Double Complement Law?
Because the complement operator (NOT) is applied twice.
Can the law be applied to expressions?
Yes.
\[ \overline{\overline{(AB+C)}}=AB+C \]
Where is the Involution Law used?
- Digital Electronics
- Logic Circuit Design
- Microprocessors
- Computer Architecture
- PLC Programming
- Embedded Systems
- FPGA Design
Is Involution Law valid for every Boolean variable?
Yes. It is universally true for all Boolean variables and Boolean expressions.
Previous Year Examination Questions
| Question | Difficulty |
|---|---|
| State the Involution Law. | Easy |
| Verify using Truth Table. | Easy |
| Simplify a Boolean expression using the Involution Law. | Medium |
| Explain the practical importance of the Double Complement Law. | Medium |
| Differentiate between Involution Law and De Morgan's Law. | Hard |
Common Misconceptions
| Misconception | Reality |
|---|---|
| NOT NOT A = NOT A | Incorrect. It equals A. |
| The law applies only to variables. | It applies to complete expressions too. |
| Two NOT gates invert twice. | They restore the original signal. |
Key Points to Remember
- Double complement always cancels itself.
- Always simplify double complements first.
- The law works for variables and expressions.
- Two NOT gates behave as a buffer.
- It reduces hardware complexity.
- It improves circuit optimization.
- The formula is easy to remember: \(\overline{\overline{A}}=A\)
Chapter Summary
The Involution Law is one of the most fundamental identities in Boolean Algebra. It states that complementing a Boolean variable or expression twice restores the original value.
Throughout this article, we explored its mathematical proof, truth table verification, digital logic implementation, logic gate interpretation, real-world analogies, practical applications, solved examples, interview questions, and examination-oriented practice problems.
Whether you are studying Digital Electronics, Computer Science, Embedded Systems, PLC Programming, FPGA Design, or preparing for competitive examinations, understanding the Involution Law is essential because it simplifies Boolean expressions and minimizes digital circuit complexity.
Final Takeaway
Remember one simple rule throughout your studies:
If you see a double complement, remove it immediately. This simple step can save valuable time while solving Boolean Algebra problems in examinations and while designing digital logic circuits.
Congratulations!
You have successfully completed this comprehensive guide on the Involution Law in Boolean Algebra and Digital Logic. You should now be able to identify, verify, simplify, and apply the Involution Law confidently in both theoretical and practical scenarios.
