Logical Operators

Rumman Ansari July 14, 2026 49 views Subject Details

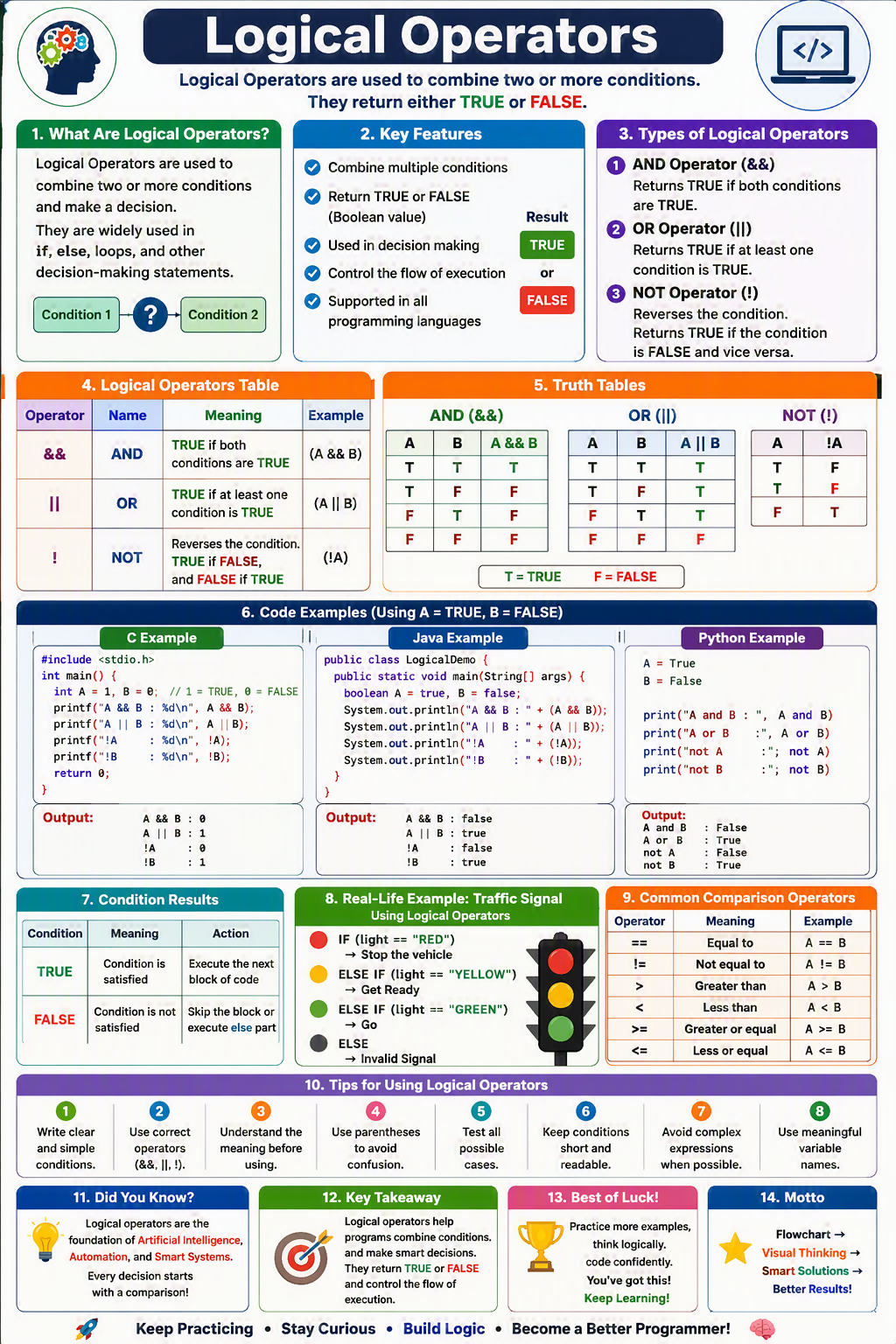

OPERATORS IN PROGRAMMING

Logical Operators

Logical Operators are used to combine two or more conditions and make decisions. They return either TRUE or FALSE and are widely used in if, else, loops, and other decision-making statements — forming the backbone of intelligent programming logic.

What Are Logical Operators?

Logical Operators are special symbols used to combine two or more conditions and make a decision. Instead of testing a single condition, logical operators allow programs to evaluate multiple conditions at once.

They return a Boolean value — either TRUE or FALSE — based on how the individual conditions relate to each other. Logical operators are essential in if, else, loops, and other decision structures.

Key Idea: Logical operators help programs combine conditions and make smart decisions. They return TRUE or FALSE and control the flow of execution.

Real-Life Analogy

Logical operators are like decision rules in real life. "If it's raining AND I have an umbrella, I'll go out." "If I have cash OR a card, I can pay." "If it's NOT weekend, go to work." Every combined decision uses logical operators.

Key Features of Logical Operators

Combine Multiple Conditions

Merge conditions into one

Logical operators allow programs to combine two or more conditions into a single logical expression.

Return TRUE or FALSE (Boolean Value)

Boolean output

Every logical operation always evaluates to either TRUE or FALSE.

Used in Decision Making

Powers conditional logic

Logical operators are used inside if, else, while, and other control statements.

Control the Flow of Execution

Direct program logic

Based on the result, they decide which block of code executes and which gets skipped.

Supported in All Programming Languages

Universal support

Every popular language — C, C++, Java, Python, JavaScript, C# — supports logical operators.

Types of Logical Operators

There are three main logical operators used in almost every programming language.

Operator	Name	Meaning	Example
`&&`	AND	Returns TRUE if both conditions are TRUE.	(A && B)
`\|\|`	OR	Returns TRUE if at least one condition is TRUE.	(A \|\| B)
`!`	NOT	Reverses the condition. Returns TRUE if condition is FALSE, and vice versa.	(!A)

1. AND Operator (&&)

AND Operator (&&)

Both conditions must be TRUE

The AND operator returns TRUE only when both conditions are TRUE. If any one is FALSE, the result is FALSE.

if (age >= 18 && hasVoterID == true) {
    printf("You can vote");
}

Example The person can vote only if they are 18+ AND have a voter ID.

2. OR Operator (||)

OR Operator (||)

At least one condition must be TRUE

The OR operator returns TRUE if at least one condition is TRUE. It returns FALSE only when both conditions are FALSE.

if (hasCash == true || hasCard == true) {
    printf("Payment possible");
}

Example Payment is possible if the person has cash OR a card.

3. NOT Operator (!)

NOT Operator (!)

Reverses the result

The NOT operator reverses the value of the condition. If a condition is TRUE, NOT makes it FALSE, and vice versa.

if (!isLoggedIn) {
    printf("Please log in first");
}

Example The message is shown only when the user is NOT logged in.

Truth Tables

Truth tables show the output of logical operators for every possible input combination. They are the easiest way to understand logical operations.

AND (&&) Truth Table

A	B	A && B
TRUE	TRUE	TRUE
TRUE	FALSE	FALSE
FALSE	TRUE	FALSE
FALSE	FALSE	FALSE

Rule: AND returns TRUE only when BOTH A and B are TRUE.

OR (||) Truth Table

A	B	A \|\| B
TRUE	TRUE	TRUE
TRUE	FALSE	TRUE
FALSE	TRUE	TRUE
FALSE	FALSE	FALSE

Rule: OR returns FALSE only when BOTH A and B are FALSE.

NOT (!) Truth Table

A	!A
TRUE	FALSE
FALSE	TRUE

Rule: NOT reverses the value — TRUE becomes FALSE and vice versa.

Code Examples (Using A = TRUE, B = FALSE)

Let's implement all three logical operators in three programming languages with A = TRUE and B = FALSE.

Example in C

#include <stdio.h>

int main() {
    int A = 1, B = 0; // 1 = TRUE, 0 = FALSE

    printf("A && B : %d\n", A && B);
    printf("A || B : %d\n", A || B);
    printf("!A     : %d\n", !A);
    printf("!B     : %d\n", !B);

    return 0;
}
// Output:
// A && B : 0
// A || B : 1
// !A     : 0
// !B     : 1

Example in Java

public class LogicalDemo {
    public static void main(String[] args) {
        boolean A = true, B = false;

        System.out.println("A && B : " + (A && B));
        System.out.println("A || B : " + (A || B));
        System.out.println("!A     : " + (!A));
        System.out.println("!B     : " + (!B));
    }
}
// Output:
// A && B : false
// A || B : true
// !A     : false
// !B     : true

Example in Python

A = True
B = False

print("A and B :", A and B)
print("A or B  :", A or B)
print("not A   :", not A)
print("not B   :", not B)

# Output:
# A and B : False
# A or B  : True
# not A   : False
# not B   : True

Note In C, TRUE = 1 and FALSE = 0. Java and Python use true/false and True/False respectively. Python uses and, or, not keywords instead of symbols.

Condition Results

Condition	Meaning	Action
TRUE	Condition is satisfied	Execute the next block of code
FALSE	Condition is not satisfied	Skip the block or execute `else` part

Real-Life Example — Traffic Signal Using Logical Operators

A traffic signal system uses equality checks combined with logical structure to decide the action based on the current light color.

if (light == "RED") {
    printf("Stop the vehicle");
}
else if (light == "YELLOW") {
    printf("Get Ready");
}
else if (light == "GREEN") {
    printf("Go");
}
else {
    printf("Invalid Signal");
}

You can also combine logical operators for more complex checks:

if (light == "GREEN" && !emergency) {
    printf("Go safely");
}

Explanation The vehicle goes only if the light is GREEN and there is NO emergency — combining && and ! operators.

Common Comparison Operators (Used with Logical Operators)

Operator	Meaning	Example
`==`	Equal to	A == B
`!=`	Not equal to	A != B
`>`	Greater than	A > B
`<`	Less than	A < B
`>=`	Greater or equal	A >= B
`<=`	Less or equal	A <= B

More Practical Examples

Example 1: Check Voting Eligibility (AND)

if age >= 18 and citizenship == "Yes":
    print("Eligible to vote")
else:
    print("Not eligible")

Example 2: Login System (OR)

if username == "admin" or role == "manager":
    print("Access granted")
else:
    print("Access denied")

Example 3: Toggle Status (NOT)

isActive = True

if not isActive:
    print("System is inactive")
else:
    print("System is running")

Example 4: Grading with Multiple Conditions

if (marks >= 90 && attendance >= 75) {
    printf("Excellent");
} else if (marks >= 60 || attendance >= 90) {
    printf("Good");
} else {
    printf("Needs improvement");
}

Example 5: Range Check

if (num >= 1 && num <= 100) {
    printf("Number is in range");
}

Short-Circuit Evaluation

Logical operators use short-circuit evaluation for performance and safety. This means that the second condition is not evaluated if the result can be determined by the first.

AND (&&) Short-Circuit

Stops if the first condition is FALSE

If the first condition is FALSE, the second condition is not evaluated because AND cannot be TRUE unless both are TRUE.

OR (||) Short-Circuit

Stops if the first condition is TRUE

If the first condition is TRUE, the second is not evaluated because OR is already TRUE.

// Safe division using short-circuit
if (b != 0 && a / b > 5) {
    printf("Safe operation");
}

Benefit Short-circuit evaluation prevents runtime errors (like division by zero) and improves performance.

De Morgan's Laws

De Morgan's Laws are two important rules that describe how to negate compound logical expressions.

Rule	Meaning
`!(A && B) = !A \|\| !B`	NOT (A AND B) is same as (NOT A) OR (NOT B)
`!(A \|\| B) = !A && !B`	NOT (A OR B) is same as (NOT A) AND (NOT B)

De Morgan's Laws help simplify complex logical expressions and make code easier to read.

Logical Operators Across Languages

Language	AND	OR	NOT
C / C++	`&&`	`\|\|`	`!`
Java	`&&`	`\|\|`	`!`
Python	`and`	`or`	`not`
JavaScript	`&&`	`\|\|`	`!`
C#	`&&`	`\|\|`	`!`

Tips for Using Logical Operators

Best Practices

Write clear and simple conditions.
Use correct operators (&&, ||, !).
Understand the meaning before using each operator.
Use parentheses to avoid confusion in complex conditions.
Test all possible cases, especially edge cases.
Keep conditions short and readable.
Avoid complex expressions when possible — split them into multiple lines.
Use meaningful variable names.
Leverage short-circuit evaluation for efficiency and safety.
Apply De Morgan's Laws to simplify negated expressions.

Common Mistakes to Avoid

Mistake 1: Confusing & and &&

& is bitwise AND
&& is logical AND
Always use && for conditions

Mistake 2: Missing Parentheses

Wrong: if (a > 0 && b < 10 || c == 5)
Correct: Use parentheses to clarify
if ((a > 0 && b < 10) || c == 5)

Mistake 3: Overcomplicating Conditions

Long chains of AND/OR
Hard to read and debug
Break into smaller conditions

Mistake 4: Ignoring Short-Circuit

Placing costly checks first
Place simpler checks first
Save computation with short-circuit

Did You Know?

Interesting Fact

Logical operators are the foundation of Artificial Intelligence, Automation, and Smart Systems. Every decision a computer makes starts with a comparison — and every complex decision uses logical operators to combine multiple comparisons!

Frequently Asked Questions

Q1. What are logical operators used for?

Logical operators are used to combine two or more conditions and return a Boolean value (TRUE or FALSE).

Q2. How many logical operators are there?

There are three main logical operators: AND (&&), OR (||), and NOT (!).

Q3. What is the difference between & and &&?

& is a bitwise AND operator that works on individual bits. && is a logical AND operator used for combining conditions.

Q4. What is short-circuit evaluation?

Short-circuit evaluation means the second condition is not evaluated if the first can determine the result — improving performance and preventing errors.

Q5. What are De Morgan's Laws?

De Morgan's Laws state: !(A && B) = !A || !B and !(A || B) = !A && !B. They help simplify negated expressions.

Q6. How does Python handle logical operators?

Python uses the keywords and, or, not instead of the symbols &&, ||, !.

Key Takeaways

Logical operators combine multiple conditions.
They return TRUE or FALSE (Boolean values).
Three main operators: AND (&&), OR (||), NOT (!).
Truth tables show the output for every input combination.
Widely used in if, else, loops, and validations.
Supported in every programming language.
Short-circuit evaluation improves performance and safety.
De Morgan's Laws help simplify complex expressions.
Foundation of AI, automation, and smart systems.

Key Takeaway

Logical operators help programs combine conditions and make smart decisions. They return TRUE or FALSE and control the flow of execution — enabling programs to handle complex real-world logic with clarity and precision.

Best of Luck! Practice more examples, think logically, code confidently. You've got this! Keep Learning!

Flowchart → Visual Thinking → Smart Solutions → Better Results! 🚀

Keep Practicing • Stay Curious • Build Logic • Become a Better Programmer!

Programming Mastery

Logical Operators

Learn what logical operators are, how AND, OR, and NOT work, how they combine conditions, and how they help programs make decisions using true and false values.

What are Logical Operators?

Logical operators are operators used to combine, check, or reverse conditions in a program.

In simple words, logical operators help a program make decisions based on one or more conditions. They usually work with Boolean values, which means values that are either true or false.

Logical operators are used to create decision-making expressions by combining or reversing conditions.

For example, a program may need to check whether a student has passed and has paid the exam fee. In that case, both conditions must be true. Logical operators help us write such logic clearly.

Easy Real-Life Example

Logical Operators as Entry Rules

Imagine an exam hall. A student can enter only if they have an admit card and arrive on time. This is an example of an AND condition because both requirements must be true.

Similarly, programming uses logical operators to check rules and decide what action should happen next.

Main Logical Operators

Most programming languages commonly use three main logical operators.

Logical Operator	Meaning	Simple Explanation
`AND`	Both conditions must be true.	Returns true only when all conditions are true.
`OR`	At least one condition must be true.	Returns true when any one condition is true.
`NOT`	Reverses a condition.	Changes true to false and false to true.

Language-Neutral Note: Some languages write logical operators as AND, OR, and NOT, while others use symbols like &&, ||, and !. The concept remains the same.

Why are Logical Operators Important?

Logical operators are important because real programs often need to make decisions using multiple conditions.

Importance of Logical Operators

They help combine multiple conditions.
They help programs make decisions.
They are used in IF, ELSE, loops, and validations.
They help check eligibility rules.
They help control access in login systems.
They help validate user input.
They allow complex conditions to be written clearly.
They work with Boolean results: true and false.

1. Logical AND Operator

The AND operator returns true only when all conditions are true.

AND means: every condition must be true.

Example

SET age = 20
SET hasIdCard = true

IF age >= 18 AND hasIdCard THEN
    DISPLAY "Entry allowed"
ELSE
    DISPLAY "Entry denied"
END IF

Expected Output

Entry allowed

Here, both conditions are true: age is at least 18 and the person has an ID card. So, the final result is true.

AND Truth Table

Condition 1	Condition 2	Result using AND
`true`	`true`	`true`
`true`	`false`	`false`
`false`	`true`	`false`
`false`	`false`	`false`

2. Logical OR Operator

The OR operator returns true when at least one condition is true.

OR means: any one condition being true is enough.

Example

SET isAdmin = false
SET isTeacher = true

IF isAdmin OR isTeacher THEN
    DISPLAY "Access allowed"
ELSE
    DISPLAY "Access denied"
END IF

Expected Output

Access allowed

Here, isAdmin is false, but isTeacher is true. Since one condition is true, the OR result becomes true.

OR Truth Table

Condition 1	Condition 2	Result using OR
`true`	`true`	`true`
`true`	`false`	`true`
`false`	`true`	`true`
`false`	`false`	`false`

3. Logical NOT Operator

The NOT operator reverses a Boolean value.

NOT means: reverse the condition.

If a condition is true, NOT changes it to false. If a condition is false, NOT changes it to true.

Example

SET isBanned = false

IF NOT isBanned THEN
    DISPLAY "User can comment"
ELSE
    DISPLAY "User cannot comment"
END IF

Expected Output

User can comment

Since isBanned is false, NOT isBanned becomes true.

NOT Truth Table

Condition	Result using NOT
`true`	`false`
`false`	`true`

Logical Operators with Comparison Operators

Logical operators are often used with comparison operators.

SET marks = 75
SET attendance = 80

IF marks >= 35 AND attendance >= 75 THEN
    DISPLAY "Student is eligible"
ELSE
    DISPLAY "Student is not eligible"
END IF

In this example, the program checks two conditions: marks and attendance. Both must be true for eligibility.

Real-World Example: Login System

Logical operators are commonly used in login and access-control systems.

SET usernameCorrect = true
SET passwordCorrect = true
SET accountLocked = false

IF usernameCorrect AND passwordCorrect AND NOT accountLocked THEN
    DISPLAY "Login successful"
ELSE
    DISPLAY "Login failed"
END IF

Expected Output

Login successful

The user can log in only when the username is correct, the password is correct, and the account is not locked.

Real-World Example: Student Exam Eligibility

SET attendancePercentage = 82
SET feesPaid = true
SET hasAdmitCard = true

IF attendancePercentage >= 75 AND feesPaid AND hasAdmitCard THEN
    DISPLAY "Allowed for exam"
ELSE
    DISPLAY "Not allowed for exam"
END IF

This example checks multiple eligibility rules using the AND operator.

Combining AND, OR, and NOT

Logical operators can be combined to create more complex conditions.

SET age = 16
SET hasParentPermission = true
SET isBanned = false

IF (age >= 18 OR hasParentPermission) AND NOT isBanned THEN
    DISPLAY "Registration allowed"
ELSE
    DISPLAY "Registration denied"
END IF

This means registration is allowed if the person is an adult or has parent permission, and the person is not banned.

Best Practice: Use parentheses when combining multiple logical operators. It makes the condition easier to read and avoids confusion.

Logical Operator Precedence

Logical operators may follow an order of evaluation. In many programming languages, NOT is evaluated before AND, and AND is evaluated before OR.

IF isStudent OR isTeacher AND isVerified THEN
    DISPLAY "Allowed"
END IF

This condition may be confusing. A clearer version is:

IF isStudent OR (isTeacher AND isVerified) THEN
    DISPLAY "Allowed"
END IF

Parentheses clearly show which part should be evaluated first.

Summary of Logical Operators

Operator	Condition Needed	Example	Meaning
`AND`	All conditions must be true.	`age >= 18 AND hasIdCard`	Adult and has ID card.
`OR`	At least one condition must be true.	`isAdmin OR isTeacher`	Admin or teacher can access.
`NOT`	Reverses the condition.	`NOT isBanned`	User is not banned.

How Logical Operators Help Debugging

Many beginner errors happen because logical conditions are written incorrectly.

Debugging Questions

Should all conditions be true, or is one condition enough?
Should the condition use AND or OR?
Is NOT reversing the correct condition?
Are parentheses needed to make the logic clearer?
Are the comparison operators correct?
Are Boolean variables named clearly?
Is the condition too long and difficult to read?
Did you test both true and false cases?

Best Practices for Logical Operators

Good logical expressions should be clear, readable, and easy to test.

Recommended Practices

Use AND when all conditions must be true.
Use OR when at least one condition is enough.
Use NOT to reverse a condition.
Use parentheses in complex conditions.
Use meaningful Boolean variable names such as isLoggedIn, hasPermission, and isActive.
Break long conditions into smaller variables.
Test conditions with different inputs.
Avoid double negatives when possible.
Keep logical expressions readable.
Use comments only when the logic is not obvious.

Common Beginner Mistakes

Mistakes

Using AND when OR is needed.
Using OR when AND is needed.
Forgetting parentheses in complex conditions.
Using NOT on the wrong condition.
Writing conditions that are too long and hard to understand.
Using unclear Boolean variable names.
Not testing false cases.
Confusing comparison operators with logical operators.

Better Habits

Read the condition in plain English first.
Use AND only when every rule must pass.
Use OR when any one rule can pass.
Use parentheses for clarity.
Name Boolean variables clearly.
Split complex logic into smaller conditions.
Test all possible cases.
Use dry run to trace condition results.

Prerequisites Before Learning Logical Operators

To understand logical operators properly, students should already know a few basic programming concepts.

Basic Prerequisites

Boolean values: true and false.
Variables and constants.
Comparison operators.
Expressions and statements.
Conditional statements such as IF and ELSE.
Basic problem-solving logic.
Dry run and trace table basics.

Practice Activity: Logical Operators

Read the following pseudocode and identify the logical operators used.

SET age = 19
SET hasIdCard = true
SET isBanned = false

IF age >= 18 AND hasIdCard AND NOT isBanned THEN
    DISPLAY "Entry allowed"
ELSE
    DISPLAY "Entry denied"
END IF

Sample Answer

Logical Operator	Purpose
`AND`	Requires age condition, ID card condition, and not-banned condition to be true.
`NOT`	Reverses `isBanned` so the condition checks that the person is not banned.

Mini Quiz

What are logical operators?

Logical operators are operators used to combine, check, or reverse conditions in a program.

When does AND return true?

AND returns true only when all conditions are true.

When does OR return true?

OR returns true when at least one condition is true.

What does NOT do?

NOT reverses a condition. It changes true to false and false to true.

Why are parentheses useful in logical expressions?

Parentheses make complex conditions easier to read and clearly show the order of evaluation.

Interview Questions on Logical Operators

Define logical operators in programming.

Logical operators are used to combine or reverse Boolean conditions and help programs make decisions.

What is the difference between AND and OR?

AND requires all conditions to be true, while OR requires at least one condition to be true.

Give an example of a logical AND condition.

age >= 18 AND hasIdCard is a logical AND condition because both conditions must be true.

Where are logical operators used?

Logical operators are used in decision-making, login systems, validation, access control, eligibility checking, loops, and conditional statements.

Why should complex logical conditions be written carefully?

Complex logical conditions can become confusing. Careful writing, meaningful names, and parentheses help avoid logical errors.

Quick Summary

Concept	Meaning
Logical Operators	Operators used to combine or reverse conditions.
`AND`	Returns true only when all conditions are true.
`OR`	Returns true when at least one condition is true.
`NOT`	Reverses a Boolean condition.
Boolean Result	The result is usually `true` or `false`.
Common Use	Used in decisions, validation, login, eligibility, and control flow.
Best Practice	Use parentheses and meaningful Boolean variable names.

Final Takeaway

Logical operators help programs make decisions using conditions. The AND operator requires all conditions to be true, the OR operator requires at least one condition to be true, and the NOT operator reverses a condition. In the Programming Mastery Course, students should understand logical operators as essential tools for writing decision-making logic in programs.
