Else-If Ladder

Learn how an else-if ladder helps a program check multiple conditions one by one and choose only one matching path of execution.

What is an Else-If Ladder?

An else-if ladder is a decision-making structure used when a program needs to check multiple conditions one after another.

In simple words, an else-if ladder helps a program choose one option from many possible options. The program checks the first condition. If it is true, that block runs and the remaining conditions are skipped. If it is false, the program checks the next condition, and so on.

An else-if ladder checks multiple conditions in sequence and executes the block of the first condition that becomes true.

It is called a ladder because conditions are arranged step by step, similar to the steps of a ladder. The program moves down the ladder until it finds a true condition.

Easy Real-Life Example

Else-If Ladder as Grade Checking

Imagine a teacher checking a student's marks. If marks are 90 or more, the student gets Grade A. Else if marks are 75 or more, the student gets Grade B. Else if marks are 60 or more, the student gets Grade C. Otherwise, the student fails.

The teacher checks the conditions one by one. Once the correct grade is found, there is no need to check the remaining conditions.

IF marks >= 90 THEN
    DISPLAY "Grade A"
ELSE IF marks >= 75 THEN
    DISPLAY "Grade B"
ELSE IF marks >= 60 THEN
    DISPLAY "Grade C"
ELSE
    DISPLAY "Fail"
END IF

Why is Else-If Ladder Needed?

A simple IF statement checks only one condition. An IF ELSE statement chooses between two options. But sometimes a program has more than two possible outcomes. In such cases, an else-if ladder is useful.

Importance of Else-If Ladder

It helps check multiple conditions.
It allows a program to choose one path from many options.
It makes decision-making logic more organized.
It avoids writing many separate IF statements.
It is useful for grading systems, discount systems, menus, and category selection.
It improves readability when conditions are related.
It stops checking further conditions once a true condition is found.
It helps write structured and logical control flow.

General Syntax of Else-If Ladder

The language-neutral structure of an else-if ladder is shown below:

IF condition1 THEN
    statements for condition1

ELSE IF condition2 THEN
    statements for condition2

ELSE IF condition3 THEN
    statements for condition3

ELSE
    default statements
END IF

The ELSE block is optional, but it is recommended because it handles the case when none of the conditions are true.

How Else-If Ladder Works

The execution of an else-if ladder follows a clear order.

Working Steps

The program checks the first condition.
If the first condition is true, its block executes.
After executing one true block, the program exits the ladder.
If the first condition is false, the next condition is checked.
This continues until a true condition is found.
If no condition is true, the ELSE block executes if it exists.
After the ladder finishes, the program continues with the next statement after the ladder.

Important: In an else-if ladder, only one matching block executes. Once a condition becomes true, the remaining conditions are skipped.

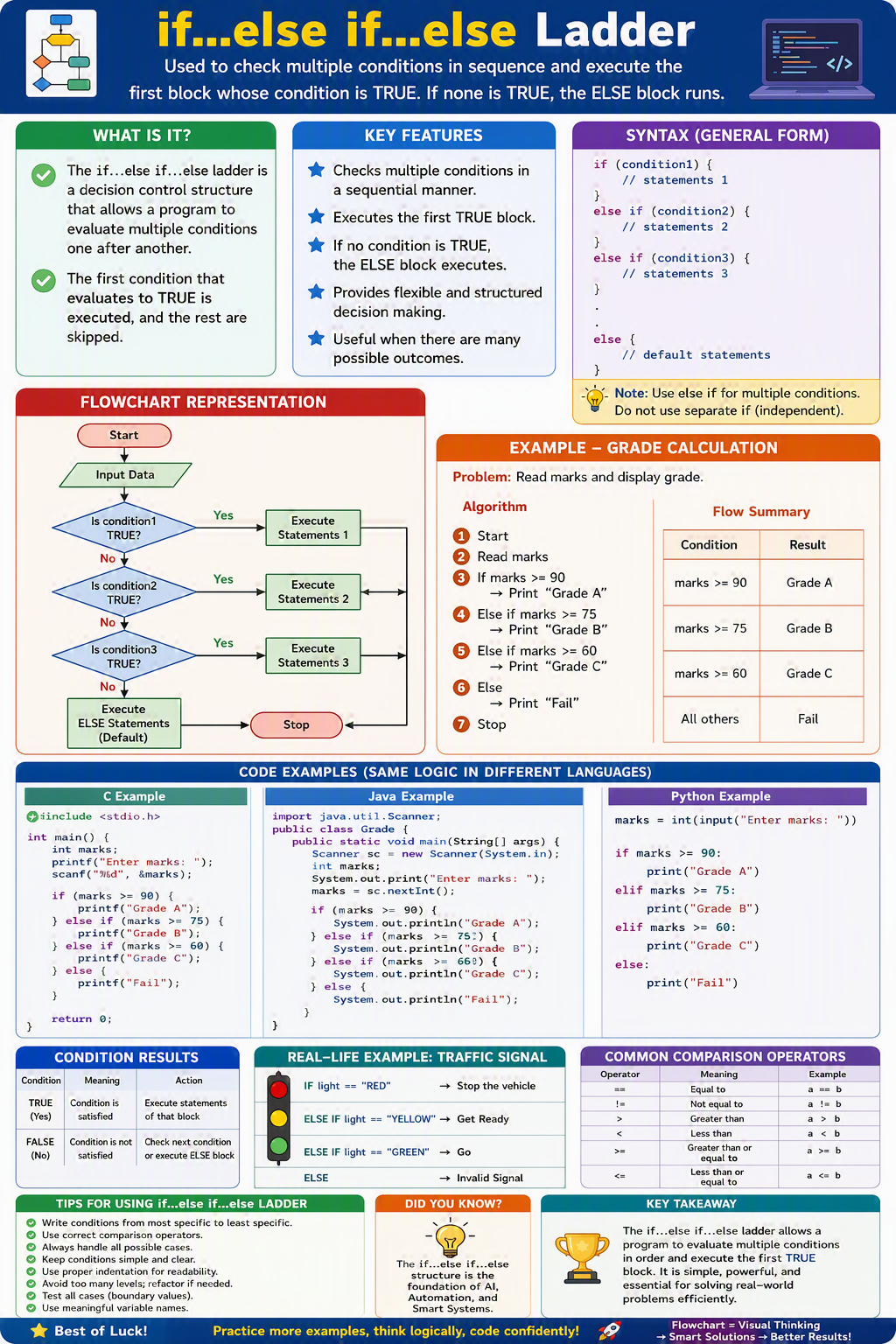

Else-If Ladder Flow

The flow of an else-if ladder can be understood like this:

START
  ↓
Check condition1
  ├── True  → Execute block1 → Exit ladder
  └── False → Check condition2
                 ├── True  → Execute block2 → Exit ladder
                 └── False → Check condition3
                                ├── True  → Execute block3 → Exit ladder
                                └── False → Execute ELSE block
  ↓
Continue program

This flow shows that the program moves downward only when previous conditions are false.

Example 1: Student Grade System

This is one of the most common examples of an else-if ladder.

/*
This program displays grade based on marks.
*/

ENTRY POINT
    DECLARE marks AS INTEGER = 0

    DISPLAY "Enter marks:"
    INPUT marks

    IF marks >= 90 THEN
        DISPLAY "Grade A"

    ELSE IF marks >= 75 THEN
        DISPLAY "Grade B"

    ELSE IF marks >= 60 THEN
        DISPLAY "Grade C"

    ELSE IF marks >= 35 THEN
        DISPLAY "Pass"

    ELSE
        DISPLAY "Fail"
    END IF
END ENTRY POINT

Sample Output

Enter marks:
82

Grade B

Since 82 is not greater than or equal to 90, the first condition is false. The next condition marks >= 75 is true, so the program displays Grade B and skips the remaining conditions.

Trace Table for Grade Example

A trace table helps students understand how conditions are checked.

marks	marks >= 90	marks >= 75	marks >= 60	Output
`95`	true	Skipped	Skipped	`Grade A`
`82`	false	true	Skipped	`Grade B`
`67`	false	false	true	`Grade C`
`28`	false	false	false	`Fail`

Order of Conditions Matters

In an else-if ladder, the order of conditions is very important. If conditions are written in the wrong order, the program may produce incorrect results.

Correct Order

IF marks >= 90 THEN
    DISPLAY "Grade A"
ELSE IF marks >= 75 THEN
    DISPLAY "Grade B"
ELSE IF marks >= 60 THEN
    DISPLAY "Grade C"
ELSE
    DISPLAY "Fail"
END IF

This order checks higher marks first, so grading works correctly.

Incorrect Order

IF marks >= 35 THEN
    DISPLAY "Pass"
ELSE IF marks >= 75 THEN
    DISPLAY "Grade B"
ELSE IF marks >= 90 THEN
    DISPLAY "Grade A"
ELSE
    DISPLAY "Fail"
END IF

If marks are 95, the first condition marks >= 35 becomes true, so the program displays Pass and skips the better grade conditions. This is logically wrong.

Beginner Rule: When checking ranges, arrange conditions from most specific or highest priority to least specific.

Example 2: Calculator Operation Selection

Else-if ladders are useful when a program must choose from multiple operations.

/*
This program chooses calculator operation using else-if ladder.
*/

ENTRY POINT
    DECLARE firstNumber AS DECIMAL = 0.0
    DECLARE secondNumber AS DECIMAL = 0.0
    DECLARE operation AS TEXT = ""
    DECLARE result AS DECIMAL = 0.0

    DISPLAY "Enter first number:"
    INPUT firstNumber

    DISPLAY "Enter second number:"
    INPUT secondNumber

    DISPLAY "Enter operation: +, -, *, /"
    INPUT operation

    IF operation == "+" THEN
        SET result = firstNumber + secondNumber
        DISPLAY "Result: " + result

    ELSE IF operation == "-" THEN
        SET result = firstNumber - secondNumber
        DISPLAY "Result: " + result

    ELSE IF operation == "*" THEN
        SET result = firstNumber * secondNumber
        DISPLAY "Result: " + result

    ELSE IF operation == "/" THEN
        IF secondNumber != 0 THEN
            SET result = firstNumber / secondNumber
            DISPLAY "Result: " + result
        ELSE
            DISPLAY "Division by zero is not allowed"
        END IF

    ELSE
        DISPLAY "Invalid operation"
    END IF
END ENTRY POINT

The program checks the operation entered by the user and executes the matching calculation.

Example 3: Discount System

A discount system can use an else-if ladder to decide the discount based on purchase amount.

/*
This program gives discount based on total amount.
*/

ENTRY POINT
    DECLARE totalAmount AS DECIMAL = 0.0

    DISPLAY "Enter total purchase amount:"
    INPUT totalAmount

    IF totalAmount >= 10000 THEN
        DISPLAY "Discount: 30%"

    ELSE IF totalAmount >= 5000 THEN
        DISPLAY "Discount: 20%"

    ELSE IF totalAmount >= 2000 THEN
        DISPLAY "Discount: 10%"

    ELSE
        DISPLAY "No discount"
    END IF
END ENTRY POINT

Higher purchase amounts are checked first so the customer receives the correct highest applicable discount.

Example 4: Temperature Category

/*
This program categorizes temperature.
*/

ENTRY POINT
    DECLARE temperature AS DECIMAL = 0.0

    DISPLAY "Enter temperature:"
    INPUT temperature

    IF temperature >= 40 THEN
        DISPLAY "Very Hot"

    ELSE IF temperature >= 30 THEN
        DISPLAY "Hot"

    ELSE IF temperature >= 20 THEN
        DISPLAY "Normal"

    ELSE IF temperature >= 10 THEN
        DISPLAY "Cold"

    ELSE
        DISPLAY "Very Cold"
    END IF
END ENTRY POINT

The program chooses one temperature category based on the entered value.

Else-If Ladder vs Separate IF Statements

Beginners often confuse else-if ladders with multiple separate IF statements.

Else-If Ladder

IF marks >= 90 THEN
    DISPLAY "Grade A"
ELSE IF marks >= 75 THEN
    DISPLAY "Grade B"
ELSE
    DISPLAY "Other Grade"
END IF

In an else-if ladder, once one condition is true, the rest are skipped.

Separate IF Statements

IF marks >= 90 THEN
    DISPLAY "Grade A"
END IF

IF marks >= 75 THEN
    DISPLAY "Grade B"
END IF

If marks are 95, both conditions are true, so both messages may run. This may not be desired in grading.

Important: Use an else-if ladder when only one block should execute from multiple related conditions.

When to Use Else-If Ladder

Use an else-if ladder when:

You need to test multiple conditions.
Only one condition should match and execute.
The conditions are related to the same decision.
You are checking ranges such as marks, age, amount, or temperature.
You want to avoid unnecessary nested conditions.
You want readable multi-condition decision logic.

Else-If Ladder vs CASE / SWITCH

Else-if ladders and case/switch structures both help with decision making, but they are useful in different situations.

Feature	Else-If Ladder	CASE / SWITCH
Best For	Multiple conditions and ranges	Multiple fixed values
Example	`marks >= 90`, `marks >= 75`	`choice = 1`, `choice = 2`
Condition Type	Can use comparison and logical operators	Usually compares one expression with fixed cases
Common Use	Grades, discounts, categories	Menus, days, operation choices

How Else-If Ladder Helps Debugging

Understanding else-if ladder execution helps programmers find logical errors in multi-condition programs.

Debugging Questions

Which condition is checked first?
Are the conditions written in the correct order?
Which condition becomes true?
Are later conditions being skipped correctly?
Is the ELSE block handling unmatched cases?
Are boundary values tested?
Are overlapping conditions causing wrong output?
Is only one block supposed to execute?

Common Beginner Mistakes

Mistakes

Writing conditions in the wrong order.
Using separate IF statements instead of an else-if ladder.
Forgetting the final ELSE block.
Using overlapping conditions without planning.
Not testing boundary values.
Writing too many complex conditions in one ladder.
Not using indentation properly.
Expecting multiple blocks to execute in an else-if ladder.

Better Habits

Arrange conditions logically.
Use else-if ladder when only one result should be selected.
Add an ELSE block for default cases.
Check higher priority conditions first.
Use clear and simple conditions.
Test all possible outputs.
Use proper indentation.
Create a trace table for complex ladders.

Best Practices for Else-If Ladder

Good else-if ladder logic should be easy to read, easy to test, and logically ordered.

Recommended Practices

Use else-if ladders for related multiple conditions.
Keep conditions simple and meaningful.
Place the most specific or highest-priority condition first.
Use a final ELSE block for unmatched cases.
Avoid unnecessary nesting inside ladders.
Use meaningful variable names.
Use proper indentation to show the ladder clearly.
Test boundary values carefully.
Do a dry run with different inputs.
Use comments only when the condition logic is not obvious.

Prerequisites Before Learning Else-If Ladder

To understand else-if ladder properly, students should already know these concepts:

Basic Prerequisites

What is control flow?
Sequential execution.
Decision making.
Simple IF statement.
IF ELSE statement.
Variables and data types.
Comparison operators.
Logical operators.
Input and output.
Dry run and trace table basics.

Practice Activity: Complete the Else-If Ladder

Complete the following pseudocode to display performance level based on marks.

INPUT marks

IF marks >= 90 THEN
    DISPLAY "Excellent"

ELSE IF marks >= 75 THEN
    DISPLAY "Very Good"

ELSE IF __________ THEN
    DISPLAY "Good"

ELSE IF __________ THEN
    DISPLAY "Pass"

ELSE
    DISPLAY "Fail"
END IF

Sample Answer

INPUT marks

IF marks >= 90 THEN
    DISPLAY "Excellent"

ELSE IF marks >= 75 THEN
    DISPLAY "Very Good"

ELSE IF marks >= 60 THEN
    DISPLAY "Good"

ELSE IF marks >= 35 THEN
    DISPLAY "Pass"

ELSE
    DISPLAY "Fail"
END IF

Mini Quiz

What is an else-if ladder?

An else-if ladder is a decision-making structure used to check multiple conditions one by one and execute the first matching block.

How many blocks execute in an else-if ladder?

Usually only one block executes: the block of the first true condition.

Why does condition order matter?

Condition order matters because the program stops checking once it finds the first true condition.

What is the purpose of the final ELSE block?

The final ELSE block handles the default case when none of the previous conditions are true.

Give one example where else-if ladder is useful.

An else-if ladder is useful for assigning grades based on marks.

Interview Questions on Else-If Ladder

Define else-if ladder in programming.

An else-if ladder is a selection structure that tests multiple conditions sequentially and executes the block associated with the first true condition.

How is else-if ladder different from multiple IF statements?

In an else-if ladder, once one condition is true, the remaining conditions are skipped. In multiple separate IF statements, each condition may be checked independently.

When should an else-if ladder be used?

It should be used when multiple related conditions need to be checked and only one result should be selected.

Can an else-if ladder work without an ELSE block?

Yes, it can work without an ELSE block, but adding ELSE is useful for handling unmatched or unexpected cases.

Why should boundary values be tested in else-if ladders?

Boundary values should be tested because errors often happen around limits such as 35, 60, 75, or 90 in grading logic.

Quick Summary

Concept	Meaning
Else-If Ladder	Checks multiple conditions in sequence.
Condition Checking	Each condition is checked only if previous ones are false.
First True Condition	The first true condition's block executes.
Remaining Conditions	Skipped after one condition becomes true.
ELSE Block	Runs when no condition is true.
Best Use	Grades, discounts, categories, ranges, and multi-condition decisions.
Best Practice	Write conditions in correct order and test boundary values.

Final Takeaway

An else-if ladder is used when a program must choose one result from multiple related conditions. It checks conditions from top to bottom and executes the first matching block. In the Programming Mastery Course, students should understand that else-if ladders are especially useful for grading, discount calculation, menu handling, category selection, and other multi-condition decision-making problems.
