What is a Flowchart?
What is a Flowchart?

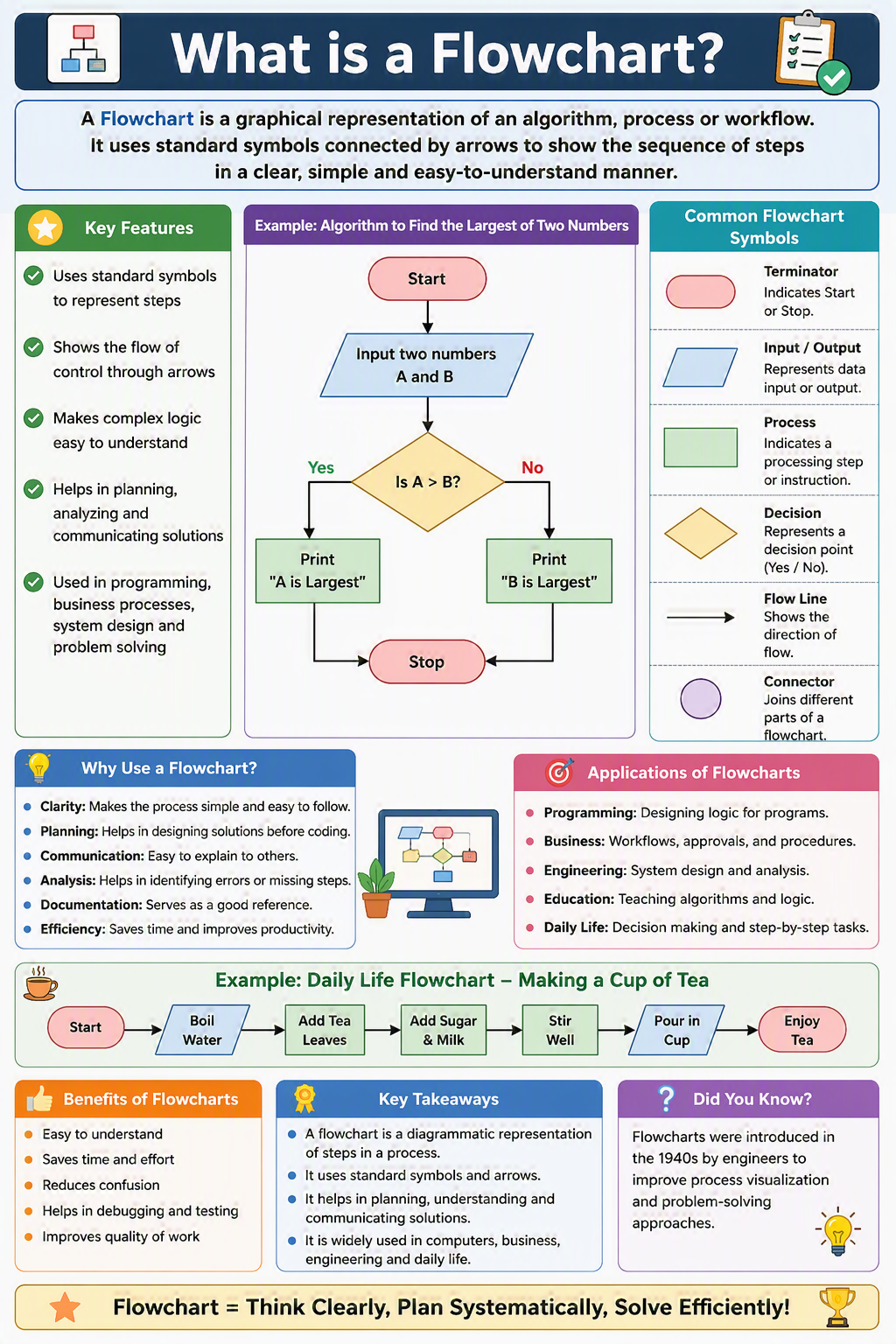

A Flowchart is a graphical representation of an algorithm, process, or workflow. It uses standard symbols connected by arrows to show the sequence of steps in a clear, simple, and easy-to-understand manner. Flowcharts are essential in programming, business, and problem-solving.
Introduction
A Flowchart is a diagram that visually represents a step-by-step process. It shows the flow of control or data through different operations using standard shapes and connecting arrows. Flowcharts make complex logic easier to understand and communicate.
Flowcharts are widely used in computer programming, engineering, business processes, education, and daily-life problem solving. They help programmers plan logic before writing code and help teams visualize workflows.
Real-Life Analogy
A flowchart is like a road map for a journey. Just as a road map guides you step-by-step to your destination, a flowchart guides your logic from the start of a problem to its solution — showing decisions, detours, and directions along the way.
Key Features of a Flowchart
Flowcharts have several important features that make them one of the most widely used tools for representing processes and algorithms.
Uses Standard Symbols
Flowcharts use standard symbols like ovals, rectangles, diamonds, and parallelograms to represent different types of operations.
Shows the Flow of Control
Arrows connect the symbols to show the sequence and direction of the process from start to finish.
Makes Complex Logic Easy
Flowcharts break down complex problems into simple visual steps that are easy to understand and follow.
Helps in Planning & Analysis
Flowcharts help in planning, analyzing, and communicating solutions before actual implementation, reducing errors.
Widely Applicable
Used in programming, business processes, engineering, system design, and everyday problem-solving.
Common Flowchart Symbols
Flowcharts follow universal standards for symbols. Each shape has a specific meaning, making the diagram easy to interpret by anyone familiar with the standard.
| Symbol | Name | Purpose |
|---|---|---|
| Oval / Rounded Rectangle | Terminator | Indicates Start or Stop of the process. |
| Parallelogram | Input / Output | Represents data input or output operations. |
| Rectangle | Process | Indicates a processing step or instruction. |
| Diamond | Decision | Represents a decision point (Yes / No or True / False). |
| Arrow | Flow Line | Shows the direction of flow between symbols. |
| Circle | Connector | Joins different parts of a flowchart. |
| Cylinder | Database / Storage | Represents stored data or a database. |
Example — Algorithm to Find the Largest of Two Numbers
Let's understand flowcharts with a simple example that compares two numbers and finds the largest one.
Problem Statement
Take two numbers A and B as input, and print the larger of the two.
Flowchart Steps
Start
↓
Input two numbers A and B
↓
Is A > B?
├── Yes → Print "A is Largest" → Stop
└── No → Print "B is Largest" → StopWhy Use a Flowchart?
Flowcharts serve many important purposes in programming, business, and problem-solving. Here are the top reasons to use them.
Clarity
Flowcharts make even the most complex processes simple and easy to follow by breaking them into visual steps.
Planning
Flowcharts help design solutions before writing actual code or building a system — preventing errors and rework.
Communication
Flowcharts are a universal language. They make it easy to explain processes and logic to team members, clients, or students.
Analysis
By visualizing the process, flowcharts help identify missing steps, logical errors, and areas for improvement.
Documentation
Flowcharts serve as excellent documentation for future reference, training, and process improvement.
Efficiency
Using flowcharts speeds up problem-solving, reduces confusion, and improves overall productivity.
Applications of Flowcharts
Flowcharts are used in almost every field. Their versatility makes them a powerful tool for both technical and non-technical purposes.
Programming
- Designing logic for programs
- Planning algorithms
- Visualizing loops and conditions
Business
- Workflows and processes
- Approval procedures
- Customer service flows
Engineering
- System design
- Process analysis
- Quality control
Education
- Teaching algorithms
- Explaining logic to students
- Visual learning aid
Daily Life
- Decision-making processes
- Step-by-step tasks
- Routine planning
Healthcare
- Patient triage flows
- Medical procedures
- Emergency protocols
Real-Life Example — Making a Cup of Tea
Flowcharts aren't limited to programming. Here's a simple flowchart for a daily-life process: making a cup of tea.
Start → Boil Water → Add Tea Leaves → Add Sugar & Milk
→ Stir Well → Pour in Cup → Enjoy Tea → StopHow to Draw a Flowchart
Follow these simple steps to create a clear and effective flowchart for any process or algorithm.
Steps to Draw a Flowchart
- Understand the problem or process you want to represent.
- Identify the start and end points.
- List all the steps and decisions in the process.
- Use the correct symbols for each type of step.
- Connect the symbols with arrows to show the flow.
- Use decision boxes for conditions (Yes/No).
- Keep it simple and easy to read.
- Test the flowchart by walking through it step by step.
- Add labels or notes for clarity where needed.
- Review and refine the diagram.
Benefits of Flowcharts
Advantages
- Easy to understand
- Saves time and effort
- Reduces confusion
- Helps in debugging and testing
- Improves quality of work
- Enhances communication
- Provides clear documentation
Limitations
- Can become complex for large processes
- Time-consuming to draw manually
- Difficult to modify once drawn on paper
- May not represent all technical details
- Requires knowledge of standard symbols
- Not suitable for very simple tasks
Algorithm vs Flowchart vs Pseudocode
Beginners often confuse these three terms. Let's compare them side by side.
| Aspect | Algorithm | Flowchart | Pseudocode |
|---|---|---|---|
| Definition | Step-by-step written instructions | Visual diagram using symbols | Code-like description in plain language |
| Form | Written text | Diagram / Chart | Structured text |
| Ease of Understanding | Moderate | Easy for anyone | Easy for programmers |
| Best For | Planning logic | Visualizing logic | Translating to code |
| Uses Symbols | No | Yes | No |
Types of Flowcharts
There are several types of flowcharts based on their purpose and complexity.
| Type | Purpose |
|---|---|
| Process Flowchart | Shows the steps of a process from start to finish. |
| Workflow Flowchart | Represents workflows in business or operations. |
| Data Flow Diagram (DFD) | Shows how data flows in a system. |
| System Flowchart | Represents system components and interactions. |
| Swimlane Flowchart | Divides the flowchart into lanes for each responsible party. |
| Program Flowchart | Represents the logic of a computer program. |
Did You Know?
Interesting Fact
Flowcharts were introduced in the 1940s by engineers to improve process visualization and problem-solving. They became popular with the rise of computer programming in the 1960s and are still widely used today in software design, business, and education.
Frequently Asked Questions
Q1. What is a flowchart in simple words?
A flowchart is a diagram that shows the steps of a process using symbols and arrows.
Q2. What are the basic symbols used in a flowchart?
The basic symbols are Terminator (oval), Input/Output (parallelogram), Process (rectangle), Decision (diamond), and Flow Line (arrow).
Q3. Why is a flowchart important?
Flowcharts help visualize processes, identify errors, communicate ideas clearly, and plan solutions systematically.
Q4. Can flowcharts be used outside programming?
Yes, flowcharts are used in business, engineering, healthcare, education, and even in daily-life planning.
Q5. What tools can I use to draw flowcharts?
Popular flowchart tools include Microsoft Visio, Lucidchart, Draw.io (diagrams.net), Canva, and Miro.
Key Takeaways
- A flowchart is a diagrammatic representation of steps in a process.
- It uses standard symbols and arrows.
- It helps in planning, understanding, and communicating solutions.
- Widely used in computers, business, engineering, and daily life.
- Different types include process, workflow, DFD, and program flowcharts.
- Flowcharts improve clarity, save time, and reduce errors.
- Understanding flowchart symbols is key to reading any process diagram.
Final Takeaway
Flowcharts are one of the most powerful tools for
visualizing, planning, and solving problems. Whether you
are a programmer, business analyst, engineer, or student, mastering
flowcharts helps you think clearly, plan systematically, and communicate
effectively.
Flowchart = Think Clearly, Plan Systematically, Solve
Efficiently! 🚀
