Introduction

Every programmer, engineer, and problem solver uses two powerful tools to think through problems before writing code: Algorithms (text-based logic) and Flowcharts (visual diagrams).

Both are essential parts of software design. Understanding when to use each — and how they complement each other — will make you a stronger programmer and clearer communicator.

What is an Algorithm?

An Algorithm is a finite sequence of well-defined instructions used to solve a problem.

What is a Flowchart?

A Flowchart is a graphical representation of an algorithm using standard symbols and arrows.

Why Both Are Important?

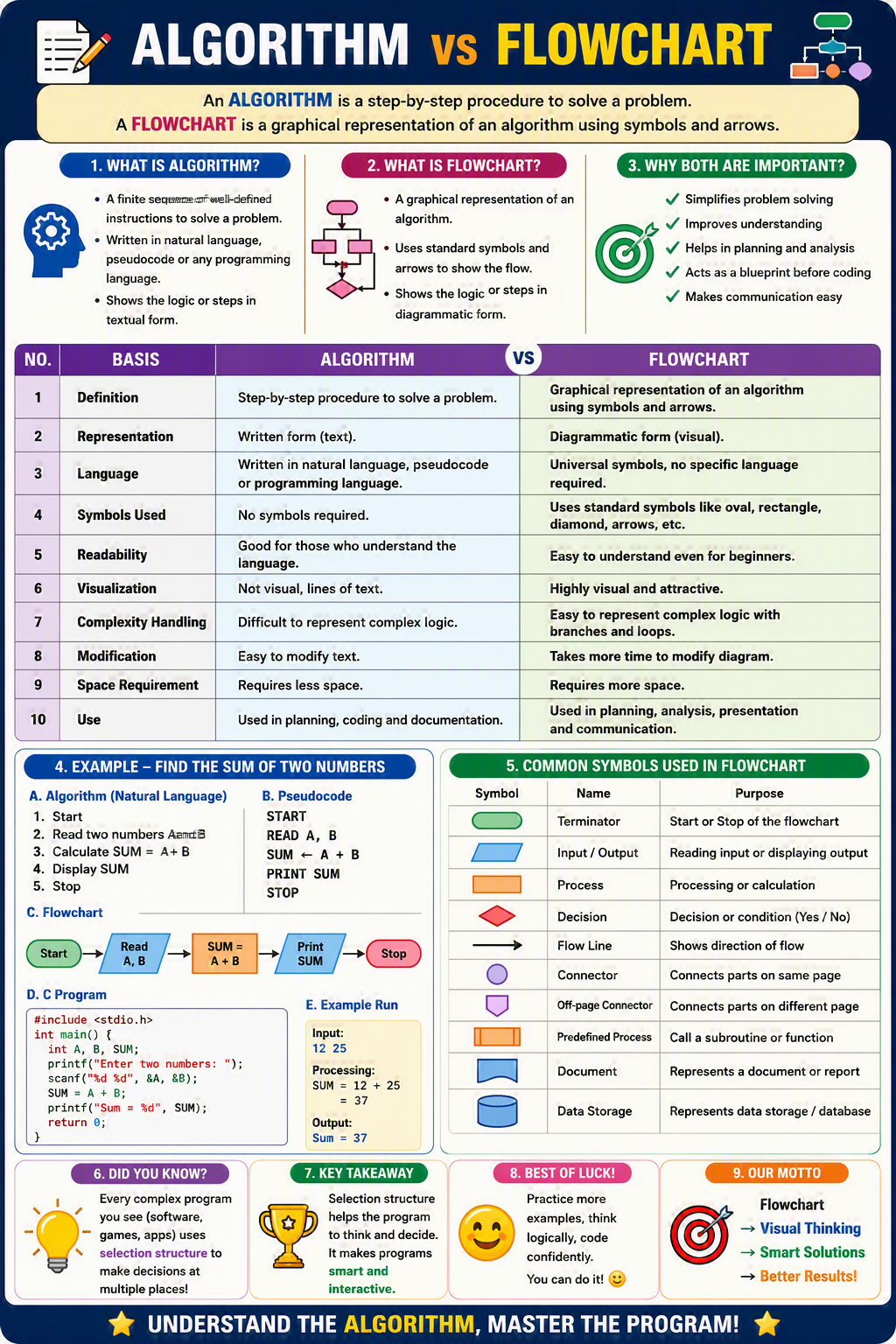

Algorithm vs Flowchart — Complete Comparison

Here's a detailed 10-point comparison between algorithms and flowcharts.

Example — Find the Sum of Two Numbers

Let's see the same problem represented as an algorithm, pseudocode, flowchart, and C program.

A. Algorithm (Natural Language)

Step 1: Start
Step 2: Read two numbers A and B
Step 3: Calculate SUM = A + B
Step 4: Display SUM
Step 5: Stop

B. Pseudocode

START
READ A, B
SUM ← A + B
PRINT SUM
STOP

C. Flowchart

Start (Oval)
   ↓
Read A, B (Parallelogram)
   ↓
SUM = A + B (Rectangle)
   ↓
Print SUM (Parallelogram)
   ↓
Stop (Oval)

D. C Program

#include <stdio.h>

int main() {
    int A, B, SUM;
    printf("Enter two numbers: ");
    scanf("%d %d", &A, &B);
    SUM = A + B;
    printf("Sum = %d", SUM);
    return 0;
}

E. Example Run

Input:
12 25

Processing:
SUM = 12 + 25
    = 37

Output:
Sum = 37

Common Symbols Used in Flowchart

Every flowchart uses these standard symbols to represent different actions.

Advantages of Algorithm

Advantages of Flowchart

When to Use Which?

Use algorithms and flowcharts based on your needs and audience.

More Comparison Examples

Example 1: Check if a Number is Even or Odd

Algorithm

Step 1: Start
Step 2: Read a number N
Step 3: If N MOD 2 == 0 then print "Even"
        Else print "Odd"
Step 4: Stop

Flowchart

Start
   ↓
Input N
   ↓
Is N MOD 2 == 0?
   ├── Yes → Print "Even"
   └── No  → Print "Odd"
   ↓
Stop

Example 2: Find Largest of Three Numbers

Algorithm

Step 1: Start
Step 2: Read A, B, C
Step 3: If A > B and A > C then Largest = A
        Else If B > C then Largest = B
        Else Largest = C
Step 4: Print Largest
Step 5: Stop

Flowchart

Start
   ↓
Input A, B, C
   ↓
Is A > B?
   ├── Yes → Is A > C?
   │           ├── Yes → Largest = A
   │           └── No  → Largest = C
   └── No  → Is B > C?
               ├── Yes → Largest = B
               └── No  → Largest = C
   ↓
Print Largest
   ↓
Stop

Example 3: Print Numbers from 1 to N

Algorithm

Step 1: Start
Step 2: Read N
Step 3: Set i = 1
Step 4: While i <= N
        Print i
        i = i + 1
Step 5: Stop

Flowchart

Start
   ↓
Input N
   ↓
i = 1
   ↓
Is i <= N?
   ├── Yes → Print i → i = i + 1 → (back to check)
   └── No  → Stop

Did You Know?

Best Practices for Both

Real-World Applications

Frequently Asked Questions

Q1. What is the main difference between algorithm and flowchart?

An algorithm is written in text form (steps in words). A flowchart is a visual diagram using symbols and arrows. Both describe the same logic differently.

Q2. Which is easier to understand — algorithm or flowchart?

Flowchart is generally easier to understand, especially for beginners, because it's visual. But algorithms are more compact and easier to translate to code.

Q3. Can I use both for the same problem?

Yes! In fact, many programmers write an algorithm first, then draw a flowchart to visualize it, and finally write the actual code.

Q4. Is pseudocode an algorithm?

Yes! Pseudocode is a form of algorithm — written in English-like language with programming keywords. It's between natural language and actual code.

Q5. Which one should I learn first?

Learn flowchart first for visualization, then algorithm/pseudocode for detail. This progression helps beginners build strong logical thinking skills.

Q6. Do professional programmers still use flowcharts?

Yes! Especially for planning complex systems, business processes, documentation, and communicating with non-technical stakeholders.

Q7. What tools can I use to draw flowcharts?

Popular tools include Draw.io, Lucidchart, Microsoft Visio, Canva, and even PowerPoint.

Q8. Can flowcharts get too complex?

Yes. For very large algorithms, flowcharts can become unwieldy. In those cases, use algorithms or split the flowchart into smaller modular pieces.

Q9. Is one better than the other?

Neither! They complement each other. Use algorithms for detail and coding. Use flowcharts for visualization and communication.

Q10. Do I need a flowchart before writing code?

Not always, but it's strongly recommended for complex problems. Simple programs can be written directly from an algorithm.
