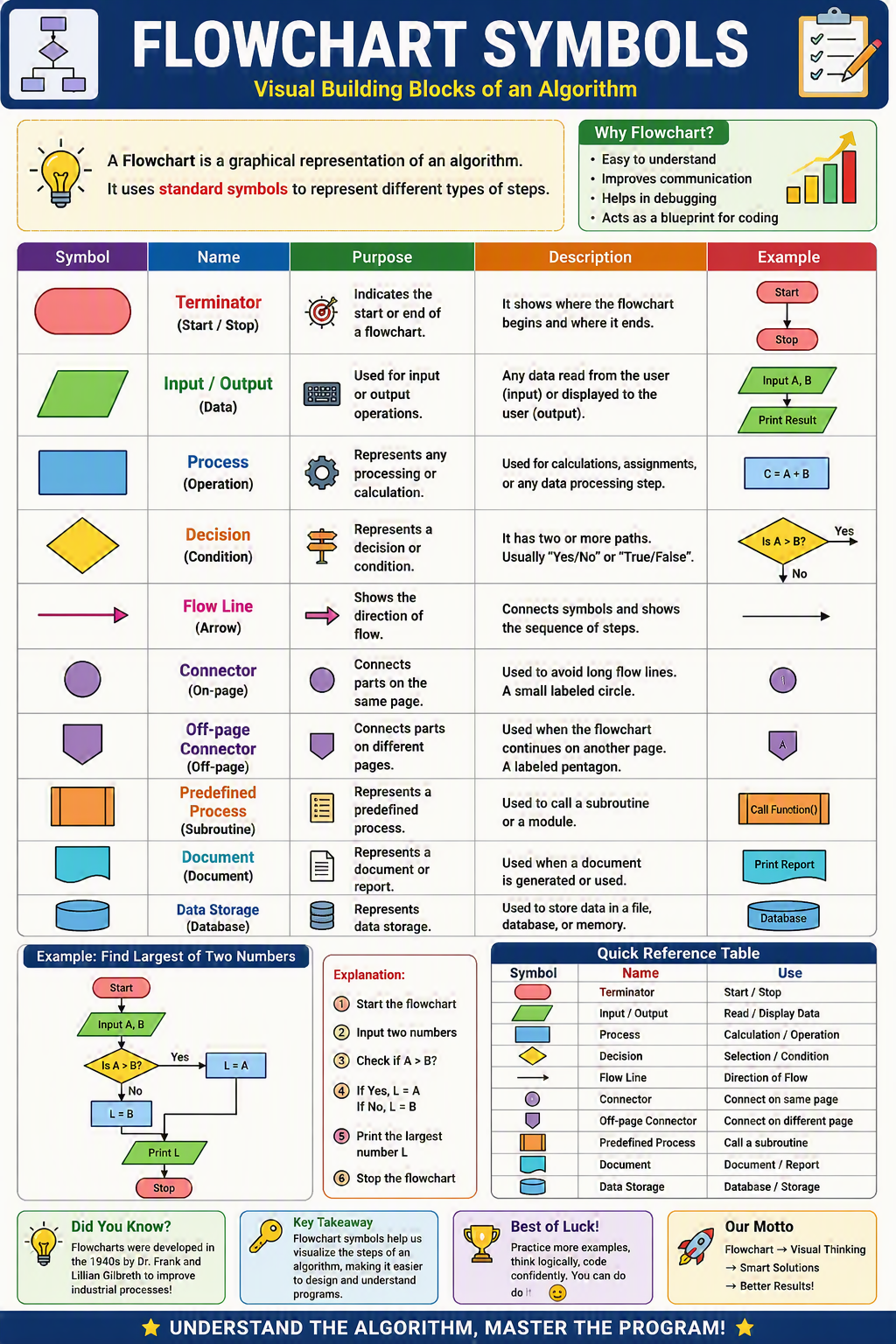

    Figure: Flowchart Symbols

    ALGORITHM FUNDAMENTALS

    Flowchart Symbols

    A Flowchart is a graphical representation of an algorithm. It uses standard symbols to represent different types of steps — making complex logic easy to understand, communicate, and debug. Mastering flowchart symbols is essential for every programmer, engineer, and problem solver.

    Introduction

    A flowchart is one of the most powerful visual tools for representing an algorithm. It transforms a set of instructions into a diagram that anyone can follow — from technical experts to complete beginners.

    Flowcharts use universal, standardized symbols recognized worldwide. Each symbol has a specific meaning, purpose, and visual shape. Learning these symbols is the first step toward drawing professional flowcharts that clearly communicate your logic.

    Key Idea: Flowchart symbols help us visualize the steps of an algorithm, making it easier to design, communicate, and understand programs.

    Real-Life Analogy

    Flowchart symbols are like road signs on a highway. Each sign has a specific meaning (stop, go, turn, exit), and drivers around the world understand them at a glance. Similarly, flowchart symbols provide universal meaning across different languages and cultures.

    Why Use Flowcharts?

    Flowcharts offer many advantages that make them a preferred tool in programming, business, and engineering.

    Easy to Understand

    • Visual representation of logic
    • Understandable at a glance
    • No technical jargon
    • Perfect for beginners

    Improves Communication

    • Bridges technical and non-technical teams
    • Universal symbols
    • Language-independent
    • Excellent for presentations

    Helps in Debugging

    • Traces logical errors easily
    • Identifies decision problems
    • Highlights infinite loops
    • Makes flaws visible

    Blueprint for Coding

    • Acts as a blueprint before coding
    • Guides implementation
    • Reduces coding errors
    • Saves development time

    The 10 Standard Flowchart Symbols

    Let's explore each of the 10 standard flowchart symbols in detail.

    1. Terminator (Oval)

    1

    Terminator

    Start / Stop

    Shape: Oval (rounded rectangle).
    Purpose: Indicates the start or end of a flowchart.
    Description: Shows where the flowchart begins and where it ends.

    Example "Start" and "Stop" written inside oval shapes to mark the beginning and end of an algorithm.

    2. Input / Output (Parallelogram)

    2

    Input / Output

    Data operations

    Shape: Parallelogram.
    Purpose: Used for input or output operations.
    Description: Any data read from the user (input) or displayed to the user (output).

    Example "Input A, B" (taking two numbers) or "Print Result" (showing the output).

    3. Process (Rectangle)

    3

    Process

    Operation / Calculation

    Shape: Rectangle.
    Purpose: Represents any processing or calculation.
    Description: Used for calculations, assignments, or any data processing step.

    Example "C = A + B" — a calculation that adds A and B, stores the result in C.

    4. Decision (Diamond)

    4

    Decision

    Condition / Branching

    Shape: Diamond.
    Purpose: Represents a decision or condition.
    Description: Has two or more paths. Usually "Yes/No" or "True/False".

    Example "Is A > B?" — the flow branches into Yes and No paths depending on the answer.

    5. Flow Line (Arrow)

    5

    Flow Line

    Direction / Connection

    Shape: Arrow.
    Purpose: Shows the direction of flow.
    Description: Connects symbols and shows the sequence of steps.

    Example An arrow from "Input A, B" to "Is A > B?" indicates the next step.

    6. Connector (Circle)

    6

    Connector (On-page)

    Connects same-page parts

    Shape: Small labeled circle.
    Purpose: Connects parts on the same page.
    Description: Used to avoid long flow lines. Labeled with letters like A, B, C.

    Example A circle labeled "A" appears in two places to show the flow continues without drawing a long line.

    7. Off-page Connector (Pentagon)

    7

    Off-page Connector

    Connects different-page parts

    Shape: Labeled pentagon.
    Purpose: Connects parts on different pages.
    Description: Used when the flowchart continues on another page.

    Example A pentagon labeled "A" at the bottom of page 1 continues from another pentagon labeled "A" at the top of page 2.

    8. Predefined Process (Rectangle with Lines)

    8

    Predefined Process

    Subroutine / Module

    Shape: Rectangle with vertical lines on the sides.
    Purpose: Represents a predefined process.
    Description: Used to call a subroutine, function, or reusable module.

    Example "Call Function()" — calling a predefined subroutine.

    9. Document (Wavy Bottom)

    9

    Document

    Document / Report

    Shape: Rectangle with a wavy bottom.
    Purpose: Represents a document or report.
    Description: Used when a document is generated or referenced.

    Example "Print Report" — generating a printable document from data.

    10. Data Storage (Cylinder)

    10

    Data Storage

    Database / Memory

    Shape: Cylinder.
    Purpose: Represents data storage.
    Description: Used to store data in a file, database, or memory.

    Example "Database" — data being read from or written to a database.

    Quick Reference Table

    Here's a quick summary of all 10 standard flowchart symbols.

    Symbol Name Use
    Oval Terminator Start / Stop
    Parallelogram Input / Output Read / Display Data
    Rectangle Process Calculation / Operation
    Diamond Decision Selection / Condition
    Arrow Flow Line Direction of Flow
    Circle Connector Connect on same page
    Pentagon Off-page Connector Connect on different pages
    Rectangle with lines Predefined Process Call a subroutine
    Wavy-bottom rectangle Document Document / Report
    Cylinder Data Storage Database / Storage

    Example — Find Largest of Two Numbers

    Let's see how flowchart symbols come together in a complete example.

    Flowchart Structure

    Start (Oval)
       ↓
    Input A, B (Parallelogram)
       ↓
    Is A > B? (Diamond)
       ├── Yes → L = A (Rectangle)
       └── No  → L = B (Rectangle)
       ↓
    Print L (Parallelogram)
       ↓
    Stop (Oval)

    Step-by-Step Explanation

    Flow Explanation

    • Step 1: Start the flowchart (Oval — Terminator)
    • Step 2: Input two numbers A and B (Parallelogram — Input)
    • Step 3: Check if A > B (Diamond — Decision)
    • Step 4: If Yes, L = A / If No, L = B (Rectangles — Process)
    • Step 5: Print the largest number L (Parallelogram — Output)
    • Step 6: Stop the flowchart (Oval — Terminator)

    More Flowchart Examples

    Example 1: Check if a Number is Even or Odd

    Start
       ↓
    Input N
       ↓
    Is N MOD 2 == 0?
       ├── Yes → Print "Even"
       └── No  → Print "Odd"
       ↓
    Stop

    Example 2: Calculate Area of Rectangle

    Start
       ↓
    Input L, B (Length, Breadth)
       ↓
    AREA = L * B (Process)
       ↓
    Print AREA
       ↓
    Stop

    Example 3: Sum of First N Natural Numbers

    Start
       ↓
    Input N
       ↓
    SUM = 0, i = 1 (Process)
       ↓
    Is i <= N? (Diamond)
       ├── Yes → SUM = SUM + i, i = i + 1 (Process) → back to Diamond
       └── No  → Print SUM
       ↓
    Stop

    Example 4: Check Voting Eligibility

    Start
       ↓
    Input age
       ↓
    Is age >= 18? (Diamond)
       ├── Yes → Print "Eligible to Vote"
       └── No  → Print "Not Eligible"
       ↓
    Stop

    Rules for Drawing Flowcharts

    Best Practices

    • Always start with a Terminator (Start).
    • Always end with a Terminator (Stop).
    • Use arrows to show the direction of flow.
    • Flow should typically go top to bottom or left to right.
    • Only one flow line should enter each process (except decisions).
    • A decision symbol should have at least two exit paths (Yes/No).
    • Use connectors to avoid crossing flow lines.
    • Keep the flowchart simple and clean.
    • Use consistent shape sizes for readability.
    • Label all decisions and processes clearly.
    • Avoid excessive use of loops without termination.
    • Test the flowchart with sample data before coding.

    Common Mistakes to Avoid

    Mistake 1: No Start or Stop

    • Missing terminator symbols
    • Unclear beginning or end
    • Always use both Start and Stop

    Mistake 2: Crossing Flow Lines

    • Difficult to read
    • Confuses the reader
    • Use connectors instead

    Mistake 3: Wrong Symbol Use

    • Using rectangle for decision
    • Using diamond for calculation
    • Learn correct meanings

    Mistake 4: Unlabeled Decisions

    • No Yes/No labels on decision paths
    • Reader cannot follow logic
    • Label every branch

    Mistake 5: Infinite Loops

    • No exit condition in loops
    • Flowchart runs forever
    • Always add termination

    Mistake 6: Overcrowding

    • Too many symbols on one page
    • Hard to read
    • Use off-page connectors

    Popular Flowchart Tools

    You can draw professional flowcharts using these tools.

    Tool Description
    Draw.io (diagrams.net) Free, web-based, easy to use
    Lucidchart Professional, collaborative
    Microsoft Visio Enterprise-standard tool
    Canva Beautiful designs, easy templates
    Miro Collaborative whiteboard
    PowerPoint Simple flowcharts using shapes
    SmartDraw Automated flowchart creation
    Google Drawings Free with Google Drive

    Did You Know?

    Interesting Fact

    Flowcharts were developed in the 1940s by Dr. Frank and Lillian Gilbreth to improve industrial processes! Their work laid the foundation for modern process visualization used in software engineering, business, and manufacturing today.

    Real-World Applications

    Software Development

    • Designing algorithms
    • Documenting logic
    • Debugging complex code
    • Teaching programming

    Business Processes

    • Workflow documentation
    • Standard operating procedures
    • Approval processes
    • Onboarding flows

    Engineering

    • System design
    • Manufacturing processes
    • Quality control
    • Product development

    Healthcare

    • Patient care workflows
    • Diagnostic procedures
    • Treatment protocols
    • Emergency response

    Frequently Asked Questions

    Q1. What is a flowchart?

    A flowchart is a graphical representation of an algorithm or process using standard symbols and arrows to show the flow of steps.

    Q2. How many standard flowchart symbols are there?

    There are 10 main standard symbols: Terminator, Input/Output, Process, Decision, Flow Line, Connector, Off-page Connector, Predefined Process, Document, and Data Storage.

    Q3. What is the shape of the Terminator symbol?

    The Terminator symbol is an oval (rounded rectangle). It marks the Start and Stop of a flowchart.

    Q4. When should I use a Decision symbol?

    Use a Decision symbol (diamond) whenever your algorithm needs to make a choice based on a condition — usually Yes/No or True/False.

    Q5. What's the difference between Process and Predefined Process?

    A Process represents any general operation or calculation. A Predefined Process represents a call to an existing subroutine, function, or module.

    Q6. Can flowcharts be used for non-programming tasks?

    Absolutely! Flowcharts are widely used in business processes, manufacturing, healthcare, education, and any field that involves step-by-step procedures.

    Q7. What tool should I use to draw a flowchart?

    Popular tools include Draw.io (free), Lucidchart, Microsoft Visio, Canva, and PowerPoint. Choose based on your needs and budget.

    Q8. How do I connect parts of a flowchart across pages?

    Use the Off-page Connector (pentagon). Label matching connectors with the same letter on both pages.

    Q9. What's the purpose of the Flow Line (arrow)?

    The Flow Line shows the direction of the algorithm's execution — connecting one symbol to the next.

    Q10. Should flowcharts always flow top to bottom?

    Generally, yes. Top-to-bottom or left-to-right flow is the standard convention. It makes the flowchart easier to read and follow.

    Key Takeaways

    • A flowchart is a graphical representation of an algorithm.
    • Uses standard symbols to represent different steps.
    • 10 main symbols: Terminator, I/O, Process, Decision, Flow Line, Connector, Off-page Connector, Predefined Process, Document, Data Storage.
    • Every flowchart starts and ends with a Terminator (oval).
    • Decision symbols (diamonds) branch based on conditions.
    • Flow lines (arrows) show direction of execution.
    • Use connectors to avoid crossing lines.
    • Keep flowcharts simple and readable.
    • Flowcharts are used in software, business, engineering, and healthcare.
    • Practice regularly to master flowchart design.

    Key Takeaway

    Flowchart symbols help us visualize the steps of an algorithm, making it easier to design and understand programs. Whether you're a programmer, engineer, business analyst, or student — mastering these 10 standard symbols opens the door to clearer thinking and better communication.
