Introduction

In programming, a control structure is a block of instructions that decides how a program flows. There are three main types of control structures: Sequence, Selection (Decision), and Repetition (Loops).

The Sequence Structure is the simplest and most fundamental. In this structure, the program executes instructions one after another, from top to bottom, exactly in the order they are written — with no decisions and no loops.

What is Sequence Structure?

The Sequence Structure is a linear, top-to-bottom flow of instructions. Each instruction is executed only after the previous one has completed.

Key Point

The sequence structure has a special "no complications" nature.

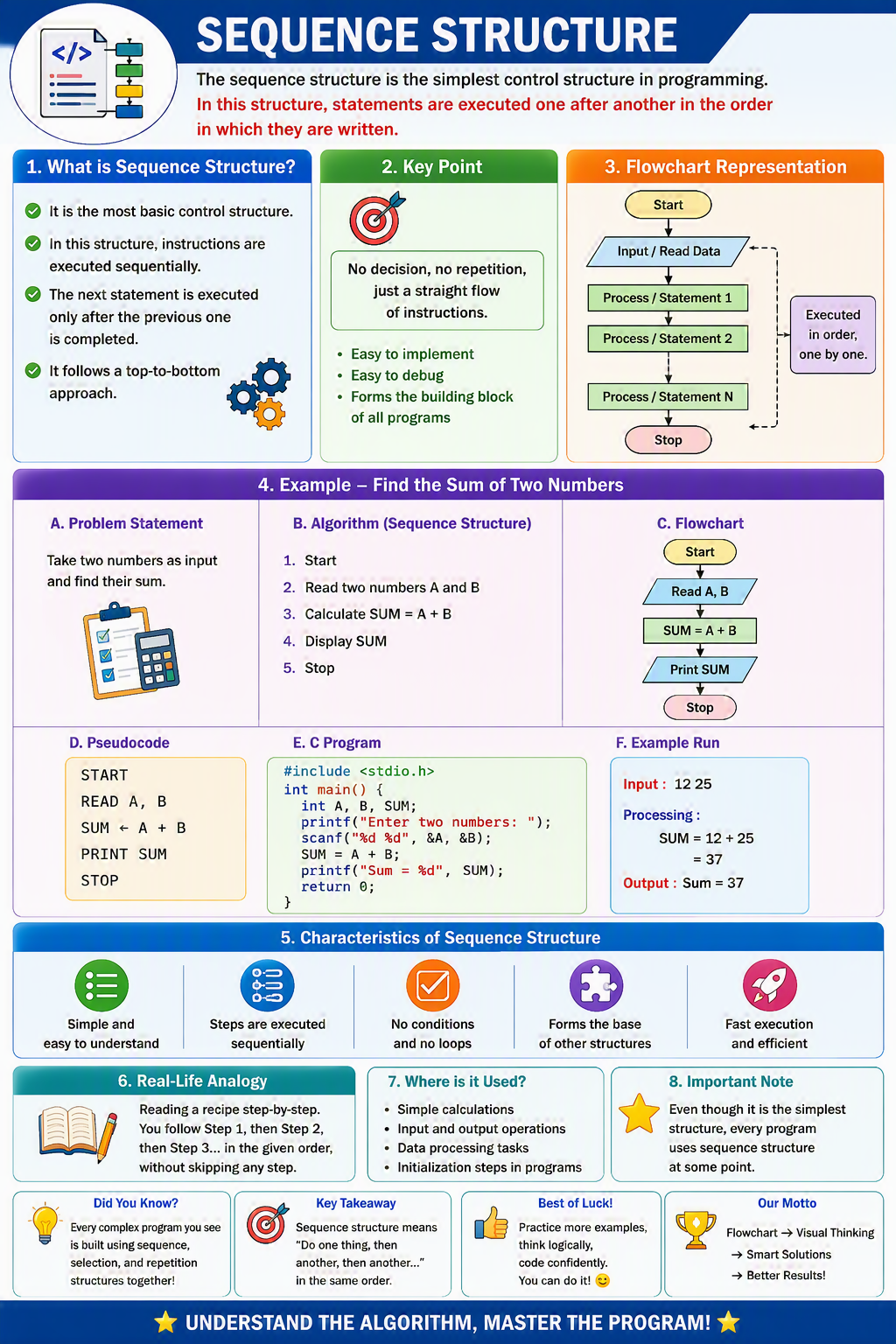

Flowchart Representation

The flowchart of a sequence structure is a straight, linear path from Start to Stop with no branching.

Start
   ↓
Input / Read Data
   ↓
Process / Statement 1
   ↓
Process / Statement 2
   ↓
Process / Statement N
   ↓
Stop

Example — Find the Sum of Two Numbers

Let's understand the sequence structure with a complete example: adding two numbers.

A. Problem Statement

Take two numbers as input and find their sum.

B. Algorithm (Sequence Structure)

Step 1: Start
Step 2: Read two numbers A and B
Step 3: Calculate SUM = A + B
Step 4: Display SUM
Step 5: Stop

C. Flowchart

Start
   ↓
Read A, B
   ↓
SUM = A + B
   ↓
Print SUM
   ↓
Stop

D. Pseudocode

START
READ A, B
SUM ← A + B
PRINT SUM
STOP

E. C Program

#include <stdio.h>

int main() {
    int A, B, SUM;
    printf("Enter two numbers: ");
    scanf("%d %d", &A, &B);
    SUM = A + B;
    printf("Sum = %d", SUM);
    return 0;
}

F. Example Run

Input: 12 25
Processing: SUM = 12 + 25
            = 37
Output: Sum = 37

5 Characteristics of Sequence Structure

Where is Sequence Structure Used?

More Practical Examples

Example 1: Calculate Area of a Rectangle

Algorithm

Step 1: Start
Step 2: Read length L and breadth B
Step 3: Calculate AREA = L * B
Step 4: Display AREA
Step 5: Stop

Python Program

L = int(input("Enter length: "))
B = int(input("Enter breadth: "))
AREA = L * B
print("Area =", AREA)

Example 2: Convert Celsius to Fahrenheit

Algorithm

Step 1: Start
Step 2: Read temperature C in Celsius
Step 3: Calculate F = (C * 9/5) + 32
Step 4: Display F
Step 5: Stop

Java Program

import java.util.Scanner;

public class TempConvert {
    public static void main(String[] args) {
        Scanner sc = new Scanner(System.in);
        double C = sc.nextDouble();
        double F = (C * 9 / 5) + 32;
        System.out.println("Fahrenheit = " + F);
    }
}

Example 3: Swap Two Numbers Using Temp Variable

Algorithm

Step 1: Start
Step 2: Read A and B
Step 3: TEMP = A
Step 4: A = B
Step 5: B = TEMP
Step 6: Print A and B
Step 7: Stop

C Program

#include <stdio.h>

int main() {
    int A, B, TEMP;
    scanf("%d %d", &A, &B);
    TEMP = A;
    A = B;
    B = TEMP;
    printf("A = %d, B = %d", A, B);
    return 0;
}

Example 4: Simple Interest Calculation

Algorithm

Step 1: Start
Step 2: Read Principal P, Rate R, Time T
Step 3: SI = (P * R * T) / 100
Step 4: Print SI
Step 5: Stop

Python Program

P = float(input("Enter Principal: "))
R = float(input("Enter Rate: "))
T = float(input("Enter Time: "))
SI = (P * R * T) / 100
print("Simple Interest =", SI)

Example 5: Print Personal Information

name = input("Enter your name: ")
age = int(input("Enter your age: "))
city = input("Enter your city: ")
print("Name:", name)
print("Age:", age)
print("City:", city)

Sequence vs Other Control Structures

Understanding how sequence differs from other control structures helps you choose the right one.

Did You Know?

Tips for Using Sequence Structure

Common Mistakes to Avoid

Frequently Asked Questions

Q1. What is a sequence structure?

A sequence structure is a control structure where statements are executed one after another, in the order they are written, without any decision or repetition.

Q2. What are the three main control structures?

The three main control structures are: Sequence, Selection (Decision), and Repetition (Loops).

Q3. Why is sequence structure important?

Because it forms the foundation of every program. Even complex programs with decisions and loops rely on sequence structures inside them.

Q4. Does sequence structure have any conditions?

No! A pure sequence structure has no if-else conditions or loops. It's a linear, straightforward flow of instructions.

Q5. Can a program use only sequence structure?

Yes, simple programs (like adding two numbers) can be written using only sequence structure. However, complex programs need selection and repetition too.

Q6. What's the flowchart look like?

A sequence flowchart is a straight, vertical line from Start to Stop, with each step following the previous one.

Q7. How is sequence different from selection?

Sequence runs statements in order without decisions. Selection uses conditions (if-else) to choose which path to take.

Q8. How is sequence different from repetition?

Sequence runs each statement once. Repetition uses loops to run statements multiple times.

Q9. Is sequence structure the fastest?

Yes! Since there are no decisions or loops, sequence structures execute very quickly with minimum processing overhead.

Q10. Can I combine sequence with other structures?

Absolutely! In fact, real-world programs always combine sequence, selection, and repetition to solve complex problems.
