Introduction

After the sequence structure (executing steps in order), the next fundamental control structure in programming is the Selection Structure. Also known as Decision Structure, it allows programs to choose different paths of execution based on conditions.

Selection structure is what makes programs smart — able to evaluate situations and respond differently based on inputs. Every real-world program from login systems to games uses selection structures at multiple points.

What is Selection Structure?

Key Point

Where is Selection Structure Used?

Types of Selection Structure

There are three main types of selection structures used in programming.

(A) IF Structure

Syntax

if (condition) {
    // statements
}

Example

if (A > B) then
    Print "A is Greater"

(B) IF-ELSE Structure

Syntax

if (condition) {
    // True block
} else {
    // False block
}

Example

if (A > B) then
    Print "A is Greater"
else
    Print "B is Greater"

(C) IF-ELSE IF Ladder

Syntax

if (condition1) {
    // block 1
} else if (condition2) {
    // block 2
} else {
    // block N
}

Example — Grade Calculation

if (marks >= 90) Grade = "A"
else if (marks >= 75) Grade = "B"
else if (marks >= 60) Grade = "C"
else Grade = "Fail"

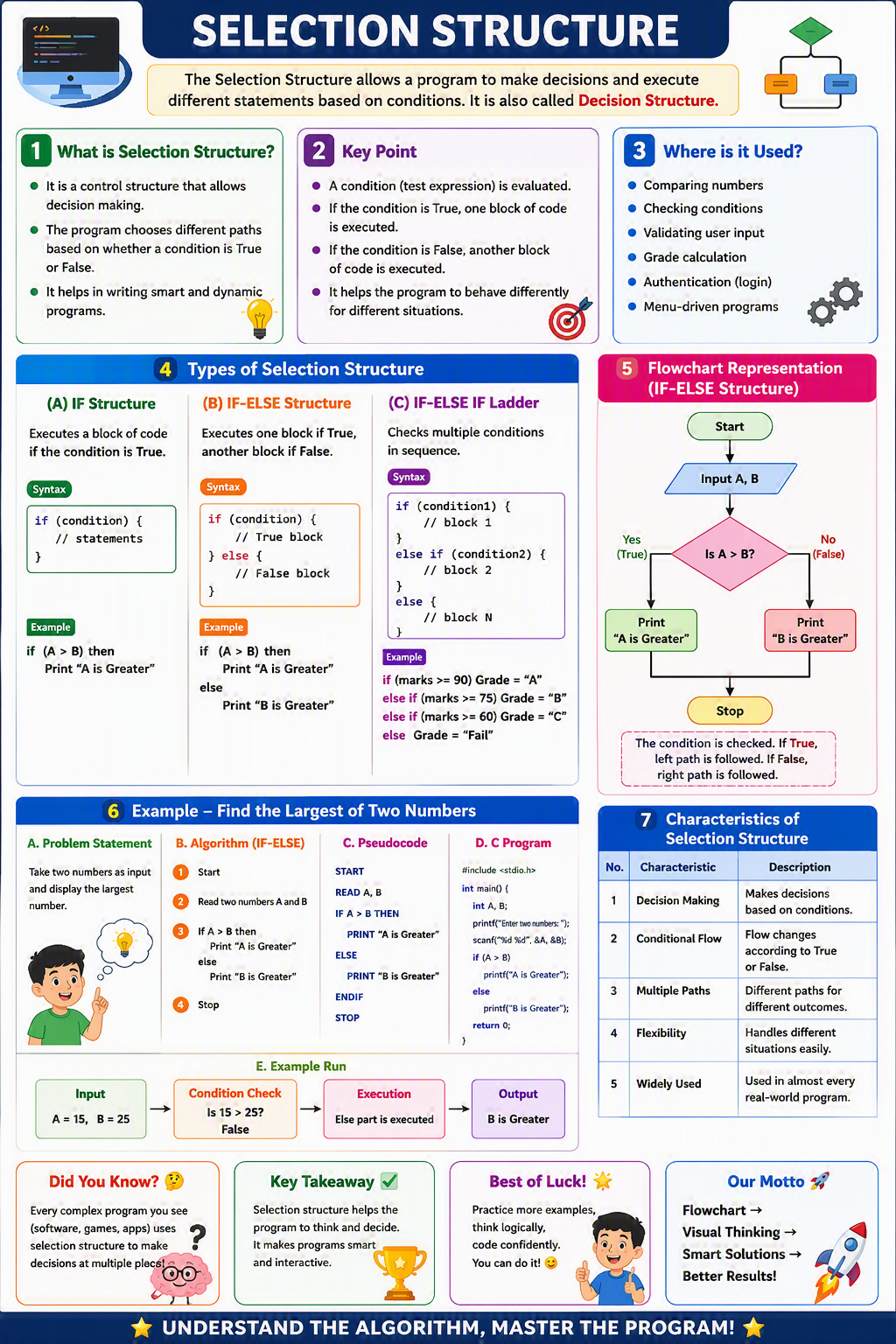

Flowchart Representation (IF-ELSE Structure)

Here's the flowchart of an IF-ELSE structure that finds the larger of two numbers.

Start
   ↓
Input A, B
   ↓
Is A > B? (Diamond)
   ├── Yes (True)  → Print "A is Greater"
   └── No  (False) → Print "B is Greater"
   ↓
Stop

Complete Example — Find the Largest of Two Numbers

A. Problem Statement

Take two numbers as input and display the largest number.

B. Algorithm (IF-ELSE)

Step 1: Start
Step 2: Read two numbers A and B
Step 3: If A > B then
        Print "A is Greater"
        Else
        Print "B is Greater"
Step 4: Stop

C. Pseudocode

START
READ A, B
IF A > B THEN
    PRINT "A is Greater"
ELSE
    PRINT "B is Greater"
ENDIF
STOP

D. C Program

#include <stdio.h>

int main() {
    int A, B;
    printf("Enter two numbers: ");
    scanf("%d %d", &A, &B);
    if (A > B) {
        printf("A is Greater");
    } else {
        printf("B is Greater");
    }
    return 0;
}

E. Example Run

Input:         A = 15, B = 25
Condition:     Is 15 > 25? → False
Execution:     Else part is executed
Output:        B is Greater

5 Characteristics of Selection Structure

More Practical Examples

Example 1: Check Even or Odd

n = int(input("Enter a number: "))
if n % 2 == 0:
    print("Even")
else:
    print("Odd")

Example 2: Check Voting Eligibility

if (age >= 18) {
    printf("Eligible to Vote");
} else {
    printf("Not Eligible");
}

Example 3: Grade Calculation (Ladder)

if marks >= 90:
    print("Grade A")
elif marks >= 75:
    print("Grade B")
elif marks >= 60:
    print("Grade C")
else:
    print("Fail")

Example 4: Simple Login System

username = input("Username: ")
password = input("Password: ")

if username == "admin" and password == "1234":
    print("Login Successful")
else:
    print("Invalid credentials")

Example 5: Find Largest of Three Numbers (Nested IF)

if (A > B) {
    if (A > C)
        printf("A is Largest");
    else
        printf("C is Largest");
} else {
    if (B > C)
        printf("B is Largest");
    else
        printf("C is Largest");
}

Example 6: Menu-Driven Program

print("1. Add\n2. Subtract\n3. Multiply\n4. Divide")
choice = int(input("Enter choice: "))
a = int(input("Enter first number: "))
b = int(input("Enter second number: "))

if choice == 1:
    print("Sum =", a + b)
elif choice == 2:
    print("Difference =", a - b)
elif choice == 3:
    print("Product =", a * b)
elif choice == 4:
    print("Quotient =", a / b)
else:
    print("Invalid choice")

Comparison Operators Used in Conditions

Logical Operators for Complex Conditions

Selection Structure Types Comparison

Did You Know?

Tips for Using Selection Structure

Common Mistakes to Avoid

Frequently Asked Questions

Q1. What is a selection structure?

A selection structure is a control structure that allows a program to choose different paths of execution based on conditions. It is also called Decision Structure.

Q2. What are the types of selection structure?

The main types are: IF, IF-ELSE, and IF-ELSE IF Ladder. Nested IF and Switch-Case are also selection structures.

Q3. Why is selection structure important?

It allows programs to make decisions and behave differently based on inputs, making them intelligent, dynamic, and interactive.

Q4. What symbol represents selection in flowcharts?

The diamond symbol represents a decision or condition in flowcharts.

Q5. What is the difference between IF and IF-ELSE?

IF handles only the True case. IF-ELSE handles both True and False cases with different code blocks.

Q6. When should I use IF-ELSE IF Ladder?

Use it when you have multiple conditions to check in order — like grade calculation, discount tiers, or menu options.

Q7. Can I use logical operators in conditions?

Yes! Use && (AND), || (OR), and ! (NOT) to combine multiple conditions.

Q8. What is nested IF?

Nested IF is an IF statement placed inside another IF statement, used when a decision depends on the result of another decision.

Q9. How is switch-case different from IF-ELSE Ladder?

Switch-case checks a variable against discrete values. IF-ELSE Ladder handles ranges and complex conditions.

Q10. What operators are used in selection structure?

Comparison operators (==, !=, >, <, >=, <=) and logical operators (&&, ||, !) are commonly used in selection structures.
