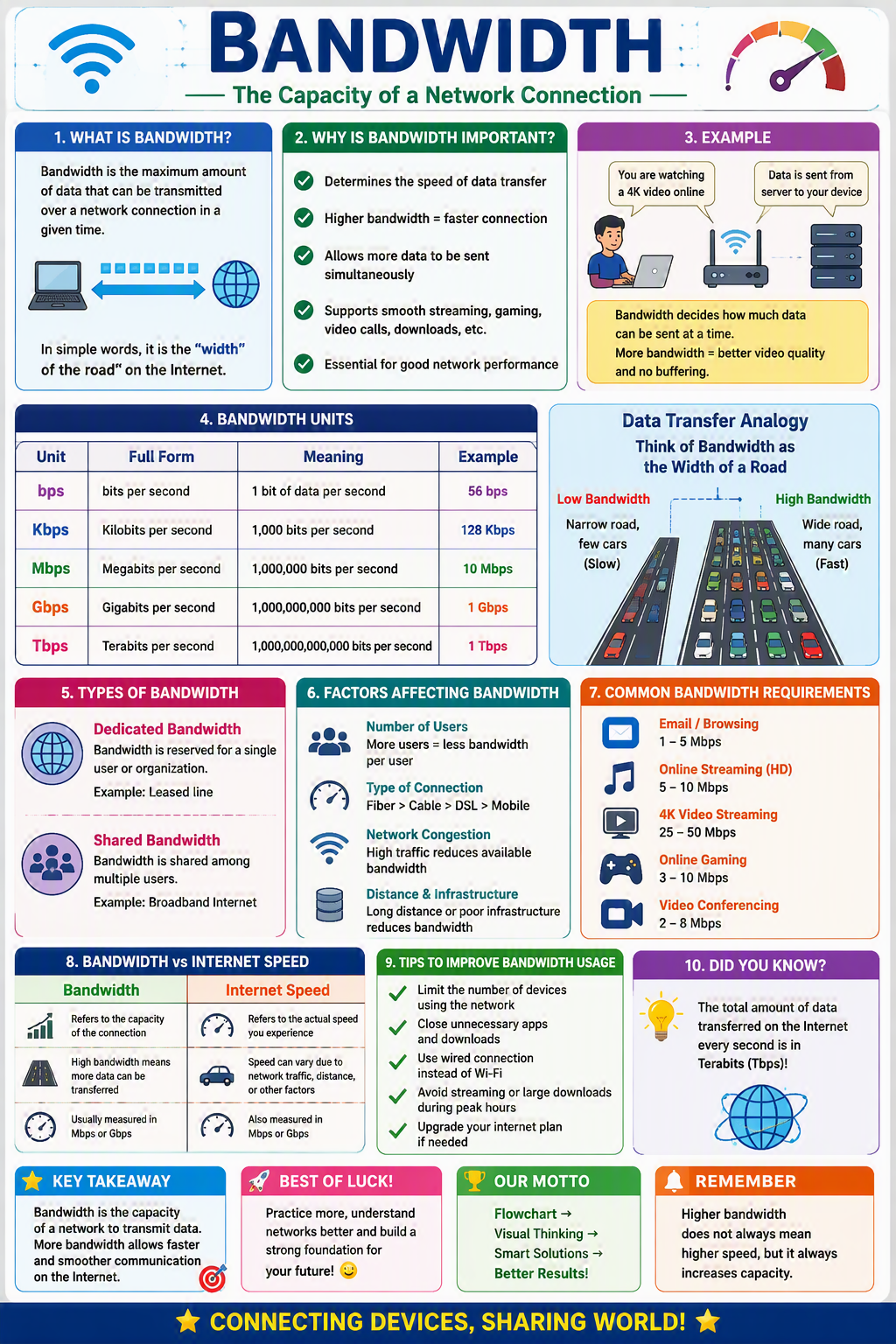

Bandwidth
Bandwidth
Bandwidth is the capacity of a network connection — the maximum amount of data that can be transmitted over a network in a given time. It determines how fast data flows through your Internet connection, affecting everything from web browsing to streaming and online gaming.
Introduction
When you shop for an Internet plan, you'll see terms like "100 Mbps" or "1 Gbps". These are measures of bandwidth — one of the most important concepts in networking.
In this article, we'll explore what bandwidth is, why it matters, how it's measured, what factors affect it, and how you can optimize your bandwidth usage. By the end, you'll fully understand this critical aspect of your Internet experience.
Real-Life Analogy
Think of bandwidth as the width of a road. A narrow road (low bandwidth) can only fit a few cars, causing traffic jams. A wide highway (high bandwidth) can handle many cars at once, allowing smooth traffic flow. Data flows through your Internet connection just like cars flow through roads.
What is Bandwidth?
Bandwidth is the maximum amount of data that can be transmitted over a network connection in a given time.
Maximum Data Capacity
Bandwidth is a measure of capacity — how much data can flow through, not necessarily how much actually does.
Measured Over Time
Bandwidth is measured as data per unit of time — usually per second (bps, Kbps, Mbps, Gbps).
"Width of the Road"
In simple words, bandwidth is the "width of the road" on the Internet — determining how much data can travel at once.
Why is Bandwidth Important?
Importance
- ✓ Determines the speed of data transfer.
- ✓ Higher bandwidth = faster connection.
- ✓ Allows more data to be sent simultaneously.
- ✓ Supports smooth streaming, gaming, video calls, downloads, etc.
- ✓ Essential for good network performance.
- ✓ Enables multiple users on one connection.
- ✓ Powers modern web services (cloud, video).
- ✓ Reduces buffering and lag.
Simple Example
Let's understand bandwidth with a real-world example.
- Better video quality
- No buffering
- Smoother playback
- Ability to watch on multiple devices
Bandwidth Units
Bandwidth is measured in bits per second (bps) and its multiples. Understanding these units helps you compare Internet plans.
| Unit | Full Form | Meaning | Example |
|---|---|---|---|
| bps | bits per second | 1 bit of data per second | 56 bps |
| Kbps | Kilobits per second | 1,000 bits per second | 128 Kbps |
| Mbps | Megabits per second | 1,000,000 bits per second | 10 Mbps |
| Gbps | Gigabits per second | 1,000,000,000 bits per second | 1 Gbps |
| Tbps | Terabits per second | 1,000,000,000,000 bits per second | 1 Tbps |
Data Transfer Analogy — The Road
The best way to understand bandwidth is to think of it as the width of a road.
Low Bandwidth
- Narrow road
- Few cars can pass at a time
- Traffic jams occur
- Slow data transfer
- Buffering and delays
High Bandwidth
- Wide road
- Many cars can pass at once
- Smooth traffic flow
- Fast data transfer
- No buffering or delays
Types of Bandwidth
Bandwidth can be categorized based on how it's allocated to users.
1. Dedicated Bandwidth
Dedicated Bandwidth
Bandwidth is reserved for a single user or organization. You get consistent speeds regardless of what others are doing.
2. Shared Bandwidth
Shared Bandwidth
Bandwidth is shared among multiple users. Speed can vary depending on how many people are using the connection.
Factors Affecting Bandwidth
Several factors can impact the bandwidth available to you.
1. Number of Users
Number of Users
More users = less bandwidth per user. When many devices share one connection, each gets a smaller portion.
2. Type of Connection
Type of Connection
Different technologies offer different bandwidth capabilities.
| Technology | Typical Bandwidth |
|---|---|
| Fiber Optic | 100 Mbps – 10 Gbps |
| Cable | 25 – 300 Mbps |
| DSL | 1 – 100 Mbps |
| Mobile (4G LTE) | 10 – 50 Mbps |
| Mobile (5G) | 50 Mbps – 10 Gbps |
| Satellite | 10 – 100 Mbps |
3. Network Congestion
Network Congestion
High traffic reduces available bandwidth. Evening hours (7-11 PM) often see slower speeds due to more users online.
4. Distance & Infrastructure
Distance & Infrastructure
Long distance from the ISP or poor infrastructure (old cables, outdated equipment) reduces bandwidth.
Other Factors
Additional Factors
- Wi-Fi vs Wired — Wired connections are usually faster and more stable.
- Router quality — Old routers limit speed.
- Device capabilities — Older devices may not support high speeds.
- ISP throttling — Some ISPs slow down after data limits.
- VPN usage — VPNs can reduce effective bandwidth.
- Background apps — Apps using bandwidth silently.
Common Bandwidth Requirements
Different online activities require different amounts of bandwidth.
| Activity | Recommended Bandwidth |
|---|---|
| Email / Browsing | 1 – 5 Mbps |
| Music Streaming | 1 – 2 Mbps |
| SD Video Streaming | 3 – 5 Mbps |
| HD Video Streaming | 5 – 10 Mbps |
| 4K Video Streaming | 25 – 50 Mbps |
| Online Gaming | 3 – 10 Mbps |
| Video Conferencing (HD) | 2 – 8 Mbps |
| File Downloads | Higher = faster |
| Cloud Backup | Upload 5+ Mbps |
| Smart Home Devices | 1 – 5 Mbps each |
Bandwidth vs Internet Speed
Bandwidth and Internet speed are related but not the same thing.
| Bandwidth | Internet Speed |
|---|---|
| Refers to the capacity of the connection | Refers to the actual speed you experience |
| High bandwidth means more data can be transferred | Speed can vary due to network traffic, distance, or other factors |
| Usually measured in Mbps or Gbps | Also measured in Mbps or Gbps |
| The maximum possible | What you actually get |
| Set by ISP plan | Affected by conditions |
Bandwidth vs Latency vs Throughput
Three related networking concepts that people often confuse.
| Concept | Meaning | Analogy |
|---|---|---|
| Bandwidth | Max data capacity | Width of a road |
| Latency | Delay in data transfer | Time to travel across the road |
| Throughput | Actual data transferred | Cars actually crossing the road |
Tips to Improve Bandwidth Usage
Optimization Tips
- ✅ Limit the number of devices using the network.
- ✅ Close unnecessary apps and downloads.
- ✅ Use a wired connection instead of Wi-Fi when possible.
- ✅ Avoid streaming or large downloads during peak hours.
- ✅ Upgrade your Internet plan if needed.
- ✅ Use a modern router (Wi-Fi 6 or better).
- ✅ Position your router in a central location.
- ✅ Update router firmware regularly.
- ✅ Use Quality of Service (QoS) to prioritize important traffic.
- ✅ Set streaming to lower quality if bandwidth is limited.
- ✅ Disable background app updates.
- ✅ Consider mesh Wi-Fi for large homes.
How to Test Your Bandwidth
You can easily test your current bandwidth using online tools.
- Speedtest.net by Ookla
- Fast.com by Netflix
- Google Speed Test (search "speed test")
- Cloudflare Speed Test
- Speedof.me
What You'll See
| Metric | Meaning |
|---|---|
| Download Speed | Speed of data coming to you |
| Upload Speed | Speed of data going out from you |
| Ping / Latency | Delay in milliseconds |
| Jitter | Variation in ping (lower is better) |
Did You Know?
Interesting Fact
The total amount of data transferred on the Internet every second is measured in Terabits (Tbps)! In 2023, global Internet traffic exceeded 400 Tbps at peak times. The world consumed more data in one day in 2023 than was created in the entire year 2000!
Bandwidth in Real-Life Scenarios
Home Network
- Family of 4: 100+ Mbps recommended
- Streaming + gaming: 200+ Mbps
- Smart home: Add 10-20 Mbps
- Home office: Upload speed matters
Small Business
- 5-10 employees: 100-200 Mbps
- Cloud-heavy: 500+ Mbps
- Video meetings: Symmetric speed
- Dedicated line preferred
Enterprise
- Gigabit fiber connections
- Data center backbones
- Multiple redundant links
- SLA-guaranteed bandwidth
Mobile Data
- 4G LTE: 10-50 Mbps
- 5G: 50 Mbps - 10 Gbps
- Data caps common
- Shared cell towers
Related Terms
| Term | Meaning |
|---|---|
| ISP | Internet Service Provider — company providing Internet. |
| Throttling | Intentional slowing down of Internet by ISP. |
| Data Cap | Monthly limit on data usage. |
| Fair Usage Policy | Rules for reasonable data usage. |
| QoS | Quality of Service — prioritizing certain traffic. |
| Peak Time | Hours with highest Internet usage. |
| Symmetric Connection | Equal upload and download speeds. |
| Asymmetric Connection | Different upload and download speeds. |
| Buffering | Delay while data loads. |
| Ping | Time for signal to travel and return. |
Frequently Asked Questions
Q1. What is bandwidth?
Bandwidth is the maximum amount of data that can be transmitted over a network connection in a given time. It's the capacity of your Internet connection.
Q2. What's the difference between bandwidth and speed?
Bandwidth is the maximum capacity of your connection. Speed is the actual data transfer rate, which can vary due to conditions.
Q3. How is bandwidth measured?
Bandwidth is measured in bits per second (bps) and multiples: Kbps, Mbps, Gbps, Tbps.
Q4. What's the difference between Mbps and MBps?
Mbps = Megabits per second (small "b"). MBps = Megabytes per second (big "B"). 8 Mbps = 1 MBps.
Q5. How much bandwidth do I need?
Depends on your usage:
- Basic browsing: 5-10 Mbps
- HD streaming: 10-25 Mbps
- 4K streaming: 25-50 Mbps
- Family of 4 with heavy use: 100+ Mbps
Q6. Why is my Internet slower than my plan?
Actual speeds are often lower due to network congestion, Wi-Fi issues, distance from router, or ISP conditions. Test with wired connection during off-peak hours.
Q7. Does Wi-Fi affect bandwidth?
Yes! Wi-Fi is generally slower than wired due to signal interference, distance, and shared airwaves.
Q8. What is bandwidth throttling?
Throttling is when your ISP intentionally slows down your Internet speed — often after data caps or during peak times.
Q9. Can I have too much bandwidth?
No, but you might be paying for more than you need. Match your plan to your actual usage.
Q10. Does 5G provide better bandwidth than 4G?
Yes! 5G can provide 10-100x more bandwidth than 4G — up to 10 Gbps in ideal conditions.
Key Takeaways
- Bandwidth is the capacity of a network connection.
- Measured in bits per second (bps, Kbps, Mbps, Gbps, Tbps).
- Think of it as the "width of the road" for data.
- Higher bandwidth = more data can flow at once.
- Two types: Dedicated (private) and Shared (multiple users).
- Affected by users, connection type, congestion, distance.
- Different activities need different bandwidth.
- Bandwidth ≠ Internet speed (speed is actual, bandwidth is capacity).
- Test bandwidth using tools like Speedtest.net.
- Optimize by upgrading plans, using wired connections, and managing devices.
Key Takeaway
Bandwidth is the capacity of a network to transmit
data. More bandwidth allows faster and smoother communication
on the Internet. Whether you're streaming 4K movies,
gaming online, or working from home, understanding bandwidth
helps you choose the right Internet plan and optimize your
experience.
Remember: Higher bandwidth doesn't always
mean higher speed, but it always increases capacity.
⭐ CONNECTING DEVICES, SHARING WORLD! ⭐
Best of Luck! Practice more, understand
networks better, and build a strong foundation for your
future! 😊
Flowchart → Visual Thinking → Smart Solutions → Better
Results! 🚀
