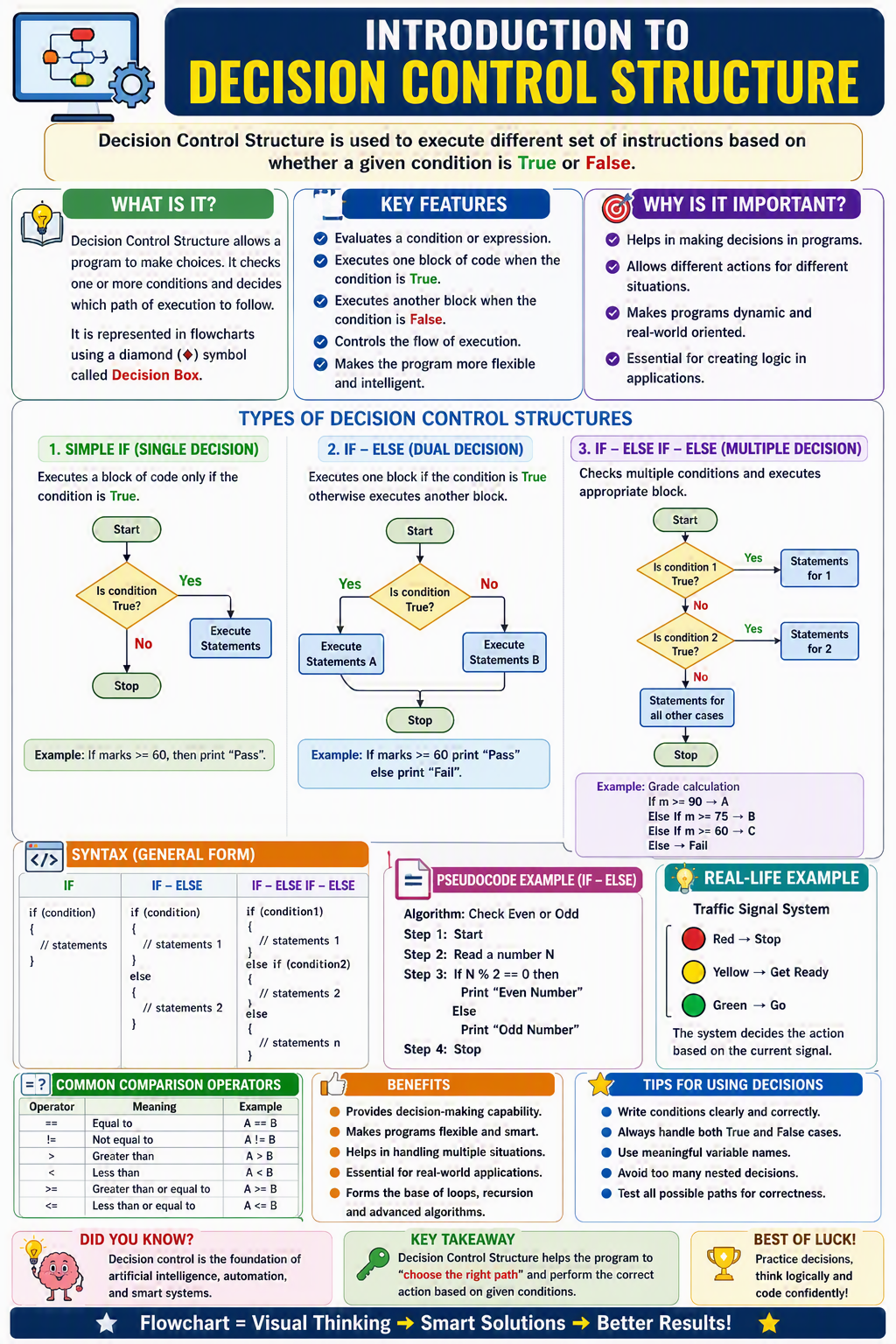

What is Decision Control Structure?

A Decision Control Structure allows a program to make choices during execution. It checks one or more conditions and decides which path of execution to follow based on the result of that check.

In flowcharts, decision control is represented using a diamond (♦) symbol called the Decision Box. In programming languages, it is implemented using statements like if, if-else, and if-else-if.

Key Features

Decision control structures have several important features that make them essential for writing intelligent programs.

Why Decision Control Structure is Important?

Without decision control, programs would only execute a fixed sequence of instructions. Decision structures add intelligence, flexibility, and usefulness to programs.

Types of Decision Control Structures

There are three main types of decision control structures used in programming and flowcharts. Each type is used based on how many conditions need to be checked.

1. Simple IF (Single Decision)

Flowchart

Start
   ↓
Is condition True?
   ├── Yes → Execute Statements
   └── No  → Skip (Go to Stop)
   ↓
Stop

Syntax

if (condition)
{
    // statements
}

2. IF – ELSE (Dual Decision)

Flowchart

Start
   ↓
Is condition True?
   ├── Yes → Execute Statements A
   └── No  → Execute Statements B
   ↓
Stop

Syntax

if (condition)
{
    // statements 1
}
else
{
    // statements 2
}

3. IF – ELSE IF – ELSE (Multiple Decision)

Flowchart

Start
   ↓
Is condition 1 True?
   ├── Yes → Statements for 1
   └── No  → Is condition 2 True?
             ├── Yes → Statements for 2
             └── No  → Statements for all other cases
   ↓
Stop

Syntax

if (condition1)
{
    // statements 1
}
else if (condition2)
{
    // statements 2
}
else
{
    // statements n
}

Syntax Summary Table

The following table shows the syntax of all three decision control structures side-by-side.

Pseudocode Example — Check Even or Odd

Here's a simple pseudocode example that demonstrates how a decision control structure works.

Algorithm: Check Even or Odd

Step 1: Start
Step 2: Read a number N
Step 3: If N % 2 == 0, then
        Print "Even Number"
        Else
        Print "Odd Number"
Step 4: Stop

Code Examples in Different Languages

Decision control structures are supported in all programming languages. Here are examples of the same "Check Even or Odd" logic in different languages.

Example in C / C++

#include <stdio.h>

int main() {
    int n;
    printf("Enter a number: ");
    scanf("%d", &n);

    if (n % 2 == 0) {
        printf("Even Number");
    } else {
        printf("Odd Number");
    }
    return 0;
}

Example in Java

import java.util.Scanner;

public class EvenOdd {
    public static void main(String[] args) {
        Scanner sc = new Scanner(System.in);
        System.out.print("Enter a number: ");
        int n = sc.nextInt();

        if (n % 2 == 0) {
            System.out.println("Even Number");
        } else {
            System.out.println("Odd Number");
        }
    }
}

Example in Python

n = int(input("Enter a number: "))

if n % 2 == 0:
    print("Even Number")
else:
    print("Odd Number")

Real-Life Example — Traffic Signal System

A traffic signal system is a classic real-world example of a decision control structure. Based on the color of the light, different actions are performed.

Pseudocode

Read signal color

If signal == "Red" then
   Print "Stop"
Else If signal == "Yellow" then
   Print "Get Ready"
Else If signal == "Green" then
   Print "Go"
Else
   Print "Invalid Signal"

Common Comparison Operators

Conditions in decision control statements often use comparison operators to compare values.

Logical Operators in Conditions

Multiple conditions can be combined using logical operators.

Benefits of Decision Control Structure

Tips for Using Decision Control Structures

Additional Examples

Example 1: Check Voting Eligibility

if (age >= 18) {
    printf("Eligible to Vote");
} else {
    printf("Not Eligible");
}

Example 2: Find Largest of Three Numbers

if (a >= b && a >= c) {
    printf("A is largest");
} else if (b >= a && b >= c) {
    printf("B is largest");
} else {
    printf("C is largest");
}

Example 3: Simple Calculator

if (op == '+') result = a + b;
else if (op == '-') result = a - b;
else if (op == '*') result = a * b;
else if (op == '/') result = a / b;
else printf("Invalid Operator");

Did You Know?

Frequently Asked Questions

Q1. What is a decision control structure?

A decision control structure is a programming construct that allows a program to execute different code blocks based on the result of a condition.

Q2. What are the types of decision control structures?

The three main types are Simple IF, IF – ELSE, and IF – ELSE IF – ELSE.

Q3. Why is decision control important?

It enables programs to make choices, handle different situations, and adapt to real-world logic — making programs dynamic and intelligent.

Q4. What symbol is used in flowcharts for decision control?

A diamond (♦) symbol called the Decision Box is used in flowcharts.

Q5. Can we have decisions inside decisions?

Yes, this is called a nested decision. However, too many nested decisions can make code hard to read.
